SONOFF THR320D TEMP AND HUMIDITY
THR320-Temperature and Humidity Monitoring WiFi Smart Switch with LCD Display (100 – 240V 50/60HZ, 20A MAX). Has an RJ9 Jack for Sensor Input. Can Be Mounted on a DIN Rail. Temp and Humidity Sensors not Included
Monitoring WiFi Smart Switch
Overview
Not recommended to be used directly on Geysers, as device current is too low. Can be used with a suitable external contactor.
Features

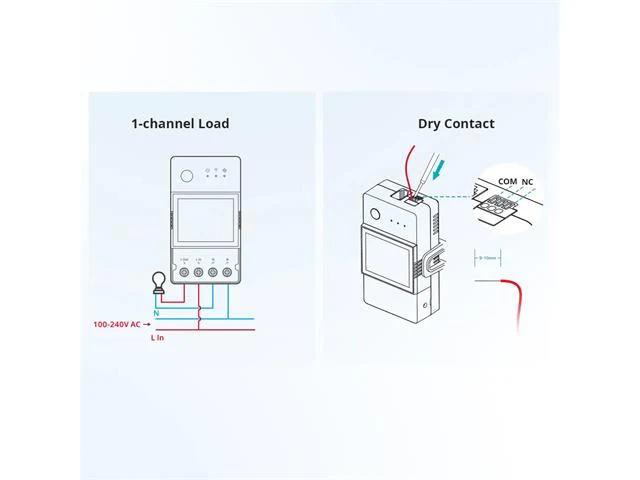

- 20A Max & Dry Contact Output - Support to connect 20A Max high load, dry contact output.
- LCD Screen - Real-time monitoring of temperature and humidity data, the screen refreshed every 5S.
- 6-Month Temp & Humi Historical Data by Hours - Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
- Local Automatic Control - Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
- Voice Control and Query - Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice.
Specifications
| TH Elite |
16A |
|---|---|
| Model |
THR320D |
| THR320D Input/Output |
100-240V~50/60Hz 20A Max |
| MCU |
ESP32 |
| Wi-Fi |
IEEE 802.11 b/g/n 2.4GHz |
| Dry contact |
5-30V, 1A Max |
| TH Elite Working Humidity |
5%-95%RH,non-condensing |
| TH Elite Working Temperature |
-10°C~40°C (14℉~104℉) |
| THS01 Working Temp |
–40℃~+85°C(-40℉~185℉) |
| THS01 Humi Measuring Range |
0~100%RH |
| DS18B20 WorkigTemp |
-55℃~+125℃(-67℉~257℉) |
| MS01 Humi Measuring Range |
0~100%RH |
| MS01 Operating Temp Range |
0℃~60°C(32℉~140℉) |
| RL560 Conductor Resistance |
Max.10Ω |
| RL560 Insulation Resistance |
Min.5MΩ |
| Certification |
TUV/CE/UKCA/WWA/FCC/RoHS/SRRC |
| Security Mode |
WPA/WPA2 |
| Works with |
Amazon Alexa, Google Assistant |
| Casing material |
PC V0 |
| Product Size |
98x54x31mm |
| Color |
White |
Downloads
Additional Information
| Device | Switch |
| Type | Monitoring | WiFi | Smart |
| References |
