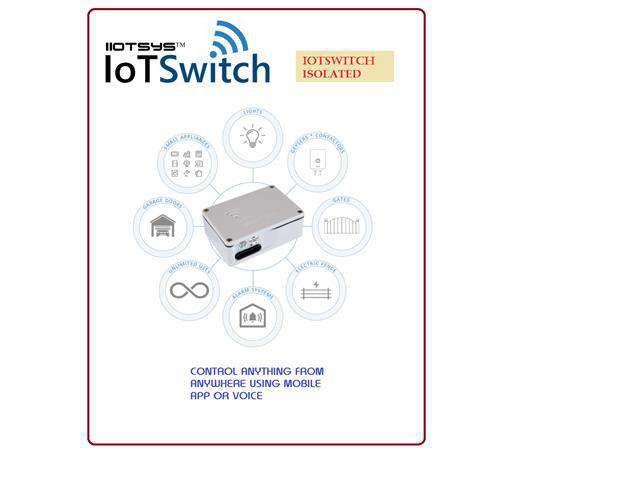

The switch is controlled through its wireless interface. It allows you to control any electrical device's power from either a direct wireless connection, through the local wifi network, from the cloud and can even integrate with your home assistant.

Example uses: Driveway Gates, Garage Doors & Alarm Systems

Free Mobile APP (Android and IOS) and Cloud Service, Allows users to control the switch from anywhere in the world.

WiFi Parameters

• WiFi: 802.11 B/G/N
• Frequency Bands: 2.4GHZ - 2.5GHZ (2400M - 2483.5M)
• Maximum Radiated Power: 90MW

Software Parameters

• WiFi Mode: Station/Softap/Station+Softap
• Security: WPA/WPA2
• Encryption: WEP/TKIP/AES
• Network Protocaols: IPV4, TCP/UDP/HTTP
• Software Development: SDK for Custom Firmware Development
• Firmware Upgrade: UART Download / Write Firmware via Host
• User Configuration: Web Server, Cloud Server, Android/IOS APP

Hardware Parameters

• Power Supply: 220V AV TO 5V DC, 600MA
• All Voltage Imput Range: 90-264VAC 50-60HZ
• Operating Temperature Range: -40 DECC - 125 DEGC
• Ambient Temperature Range: Normal Temperature
• Package Size: 68mm(L)46mm(W)25mm(H)
• Fasteners: M2 Stainless Steel Cap Screws (4)*12mm
• Grommet: SHA70 Silicone Rubber
• Top Seal: SHA70 Silicone Rubber
• Case Wall Thickness: 3mm
• Lid Thickness: 3mm
• Case Material: ABS Injection Moulded Plastic
• External Interface: 4 Pole Terminal Block
• Switched Voltage and Amperage: 0-100VAC/VDC 15A | 100-240VAC 15A

Compliance and Standards

• Seals: GB/T531/T528
• Casing: ABS(UL 94 V0)
• Components: UL1012, EN60950, EN61810, EN60998, UL60950, IEC61810 | ISO 9001:2008, UL CERTIFICATION | UL, CE, ROHS

Compliance and Standards Summary

• Product: UL | EN | IEC | ROHS | ISO | GB | Certification

WHAT'S IN THE BOX

• Wireless IOT Switch, Hex Key, Setup Instructions
