SONOFF ENERGY MONITOR POWCT
Power Ring Smart Power Meter With Split Core 100A CT
Ring Smart Power Meter
Features
- Split Core Current Transformer ClampĀ Transformer current detection up to 100 A. No physical contact with live wires, eliminating the risk of electric shock. Just release or close the latches on the side of the sensor to open and close the CT sensor.
- Energy MonitorĀ Install in the electrical circuit panel of your home to monitor the power consumption of household appliances or rooms.
- 6-month Historical Data HoldĀ Automatically save your electricity usage data when you remove appliances or have a power outage. The data can be saved for up to 6 months and exported to a file for viewing.
- Support Contactor ControlĀ POWCT has a dry contact relay with a rated current output of 2A which is used with a contactor to realize switching control of the load.
- Safe & ReliableĀ Go through various rigorous tests, including lightning and surge tests, short circuit tests, drop tests, salt spray tests, tests in extremely harsh environments, etc. Products you can 100% trust.

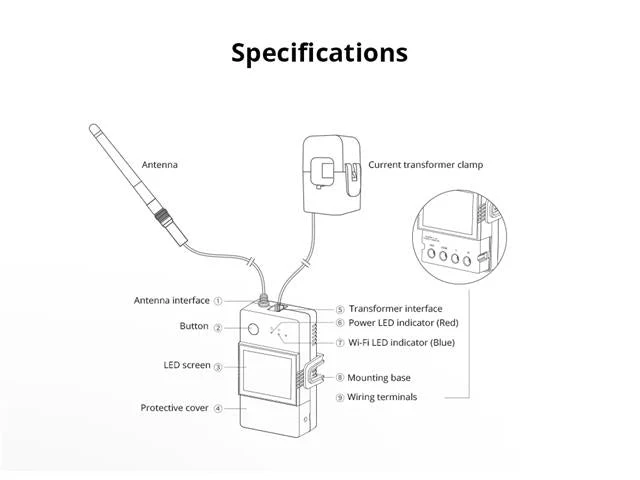

Specifications
| Model |
POWCT |
|---|---|
| Rating |
100-240V~50/60Hz 2W |
| Wireless Connectivity |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| Antenna interface type |
SMA |
| Transformer interface type |
RJ9 |
| Transformer current detection range |
0-100A |
| Measurement Category |
CAT II 0-100A 300V-MAX |
| Color |
White |
| Casing material |
PC |
| Applicable place |
Indoor |
| Working temperature |
-40ā~50ā |
| Working humidity |
5%~95%RH, non-condensing |
| Maximum diameter of wire that the CT sensor can fit |
15mm Max |
Additional Information
| Device | Power Meter |
| Type | Powct | Split Core | 100A CT |
$34.79
