FNIRSI DMC-100 RMS AC/DC CLAMP

Product image 1
1 / 6

FNIRSI DMC-100 RMS AC/DC CLAMP

FNIRSI DMC-100 Digital Clamp Meter Multimeter 10 000 Counts, True RMS, 600A Curve Recording Rechargeable AMP Meter, Measures NCV, AC/DC Voltage Current, Continuity Capacitance Diode Resistance, Temperature

Digital Clamp Meter Multimeter

Features

  • High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
  • Wide Measurement Range: Supports up to 750V voltage and 600A current.
  • High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
  • Intuitive Interface: New UI with data curve display for easy reading at a glance.

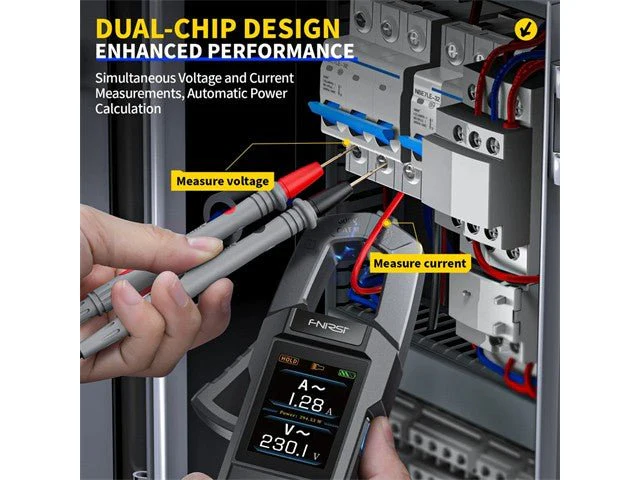

  • Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
  • NCV Function: Non-contact voltage measurement and zero/fire line identification.
  • Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
  • Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
  • Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
  • Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
  • Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
  • Temperature Unit Switching: Easily switch between temperature units (℃/℉).
  • Adjustable Brightness: Screen brightness is adjustable for various environments.
  • Firmware Upgradeable: Supports firmware updates to enhance functionality.

Specifications

Model DMC-100
Screen 2.0'' TFT color screen
Screen Resolution 240 × 320 pixels
Battery 3.7V, 1500mAh Lithium Battery
Charging Specification USB Type-C, 5V/1A
Maximum Jaw Size 25mm
Temperature Unit ℃ / ℉
Product Size 193 × 74 × 32 mm
Product Weight 194g
DC Voltage 9.999V / 99.99V / 999.9V
AC Voltage 9.999V / 99.99V / 750.0V
DC & AC Current 99.99A / 600.0A
AC Current 4A / 40A / 600A
Resistance 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ and 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Capacitance 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Frequency 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature Range -55 ~ 1300℃ / -67 ~ 2372℉
Diode Measurement Support
On-off Test Support
Non-Contact Voltage Check (NCV) Support
Zero Fire Wire Check Support
Measuring Mode 1. General Measurement
2. Waveform Display
3. Power Measurement
Measurement Gear Manual Adjustment
Torch Support
Data Zeroing Support
Maximum/Minimum Value Support
Waveform Display Support
Power Calculation Support
Data Hold Support
Data Storage and Viewing Up to 30 groups of data
Language Chinese / English
Brightness Adjustment 10-speed adjustment
Auto Power Off OFF / 5min / 15min / 30min
Firmware Upgrade Support

Downloads

Additional Information

Device Clamp Meter
Type Digital
