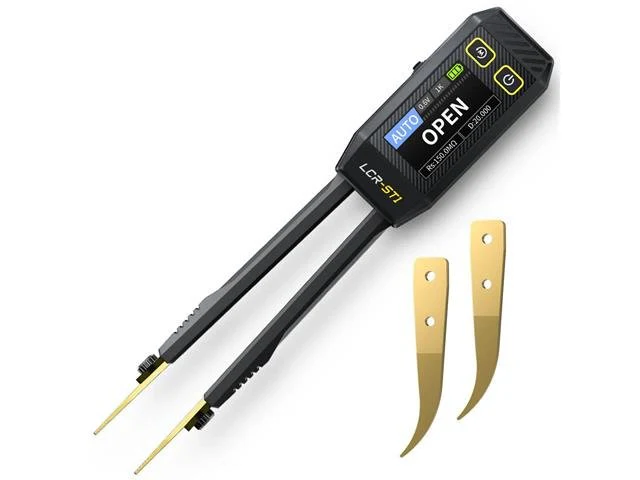

FNIRSI LCR-ST1 DIGITAL TWEEZER
Mini Smart Digital Tweezer
Overview
The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
Features
- LCR Tweezer Tester: The FNIRSI LCR-ST1 is a portable and multifunctional instrument for measuring resistance, capacitance, inductance, and diodes.
- Measurement Range: 3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H.
- Multiple functions: D, Z, Q, R, ESR value reading. Auto recognition of elecronic components, primary and secondary parameters display. 1.14'' HD color display, is easy to operation.
- Data Storage and Export: The LCR tester automatically saves test records and allows data transfer to a PC via Excel.
- 2 Types of Tweezer Heads: With pointed head and hook head, it is convenient to test different types of products. It is equipped with a storage bag and can be charged via a data cable.
Specifications
Downloads
Additional Information
| Device | Tweezer |
| Type | Mini Smart | Digital |
Original: $38.37
-70%$38.37
$11.51Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mini Smart Digital Tweezer
Overview
The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
Features
- LCR Tweezer Tester: The FNIRSI LCR-ST1 is a portable and multifunctional instrument for measuring resistance, capacitance, inductance, and diodes.
- Measurement Range: 3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H.
- Multiple functions: D, Z, Q, R, ESR value reading. Auto recognition of elecronic components, primary and secondary parameters display. 1.14'' HD color display, is easy to operation.
- Data Storage and Export: The LCR tester automatically saves test records and allows data transfer to a PC via Excel.
- 2 Types of Tweezer Heads: With pointed head and hook head, it is convenient to test different types of products. It is equipped with a storage bag and can be charged via a data cable.
Specifications
Downloads
Additional Information
| Device | Tweezer |
| Type | Mini Smart | Digital |
