ZOV14D560K
MOV Metal Oxide Varistor Ø 14mm • VACrms= 35V • Prated= 0.1W • Energy10/1000 uS= 11 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification

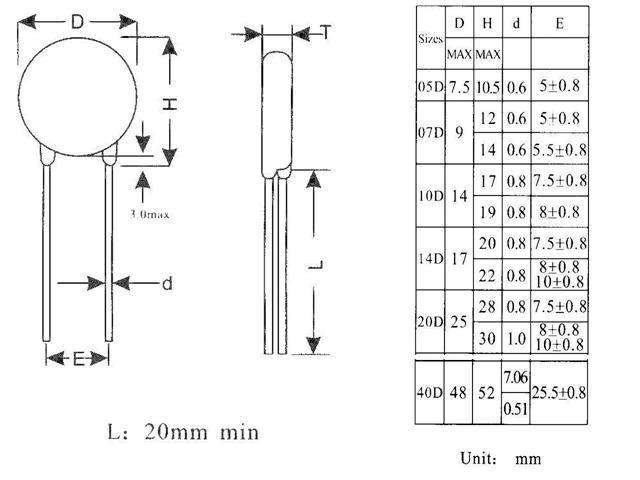

| Size | 14mm |
| Max Allowable ACrms Voltage (V) | 35V |
| Max Allowable DC Voltage (V) | 35V |
| Varistor Voltage @1mA (V) | 45V |
| Max Peak Current @8/20uS (A) | 1000A |
| Max Energy 10/1000 uS (J) | 11 |
| Rated Power (W) | 0.1W |
| Typical Capacitance @ 1kHz (pF) | 3600F |
$0.10
Original: $0.32
-69%ZOV14D560K—
$0.32
$0.10Product Information
