ZOV10D781K
MOV Metal Oxide Varistor Ø 10mm • VACrms= 485V • Prated= 0.4W • Energy10/1000 uS= 80 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification

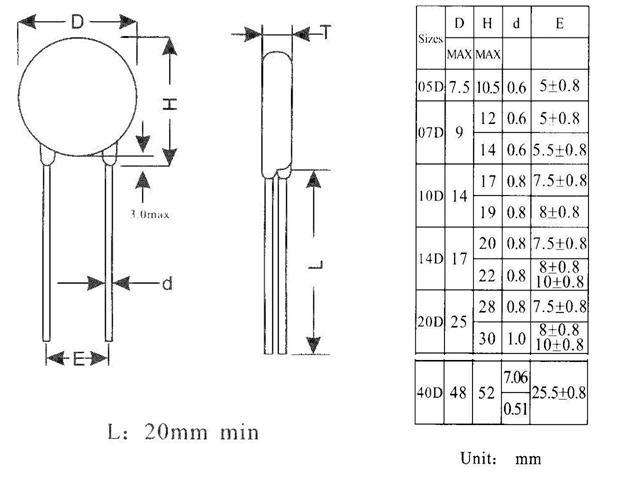

| Size | 10mm |
| Max Allowable ACrms Voltage (V) | 485V |
| Max Allowable DC Voltage (V) | 640V |
| Varistor Voltage @1mA (V) | 780V |
| Max Peak Current @8/20uS (A) | 2500A |
| Max Energy 10/1000 uS (J) | 80 |
| Rated Power (W) | 0.4W |
| Typical Capacitance @ 1kHz (pF) | 130F |
$0.07
Original: $0.23
-70%ZOV10D781K—
$0.23
$0.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MOV Metal Oxide Varistor Ø 10mm • VACrms= 485V • Prated= 0.4W • Energy10/1000 uS= 80 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification
| Size | 10mm |
| Max Allowable ACrms Voltage (V) | 485V |
| Max Allowable DC Voltage (V) | 640V |
| Varistor Voltage @1mA (V) | 780V |
| Max Peak Current @8/20uS (A) | 2500A |
| Max Energy 10/1000 uS (J) | 80 |
| Rated Power (W) | 0.4W |
| Typical Capacitance @ 1kHz (pF) | 130F |
