ZOV07D820K
MOV Metal Oxide Varistor Ø 7mm • VACrms= 50V • Prated= 0.25W • Energy10/1000 uS= 5.5 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification

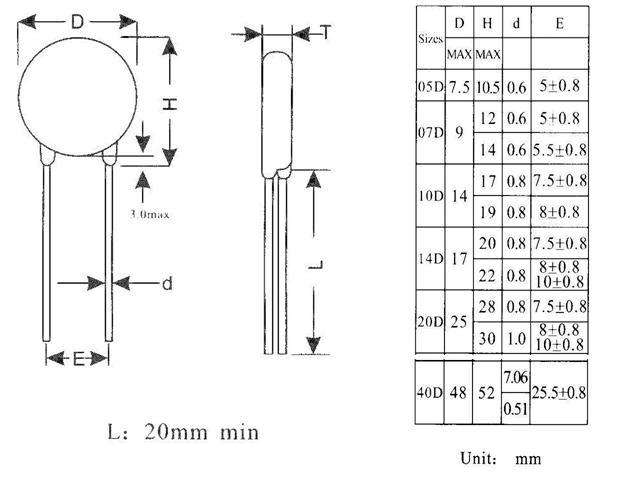

| Size | 7mm |
| Max Allowable ACrms Voltage (V) | 50V |
| Max Allowable DC Voltage (V) | 65V |
| Varistor Voltage @1mA (V) | 82V |
| Max Peak Current @8/20uS (A) | 1200A |
| Max Energy 10/1000 uS (J) | 5.5 |
| Rated Power (W) | 0.25W |
| Typical Capacitance @ 1kHz (pF) | 600F |
$0.04
Original: $0.15
-73%ZOV07D820K—
$0.15
$0.04Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MOV Metal Oxide Varistor Ø 7mm • VACrms= 50V • Prated= 0.25W • Energy10/1000 uS= 5.5 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification
| Size | 7mm |
| Max Allowable ACrms Voltage (V) | 50V |
| Max Allowable DC Voltage (V) | 65V |
| Varistor Voltage @1mA (V) | 82V |
| Max Peak Current @8/20uS (A) | 1200A |
| Max Energy 10/1000 uS (J) | 5.5 |
| Rated Power (W) | 0.25W |
| Typical Capacitance @ 1kHz (pF) | 600F |
