ZOV07D220K
MOV Metal Oxide Varistor Ø 7mm • VACrms= 14V • Prated= 0.02W • Energy10/1000 uS= 1.1 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification

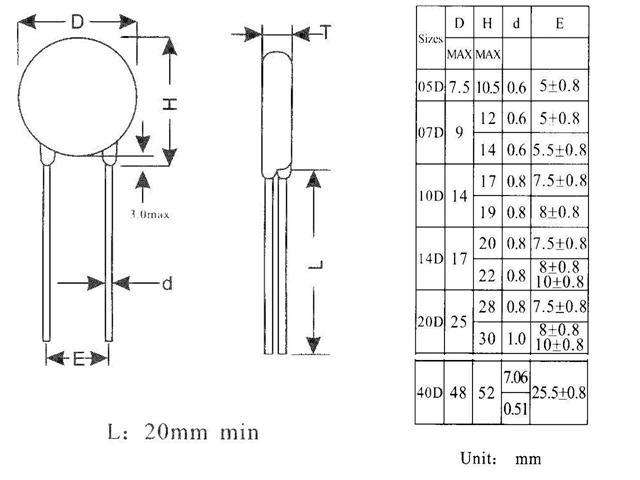

| Size | 7mm |
| Max Allowable ACrms Voltage (V) | 14V |
| Max Allowable DC Voltage (V) | 18V |
| Varistor Voltage @1mA (V) | 22V |
| Max Peak Current @8/20uS (A) | 250A |
| Max Energy 10/1000 uS (J) | 1.1 |
| Rated Power (W) | 0.02W |
| Typical Capacitance @ 1kHz (pF) | 2300F |
$0.04
Original: $0.15
-73%ZOV07D220K—
$0.15
$0.04Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MOV Metal Oxide Varistor Ø 7mm • VACrms= 14V • Prated= 0.02W • Energy10/1000 uS= 1.1 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification
| Size | 7mm |
| Max Allowable ACrms Voltage (V) | 14V |
| Max Allowable DC Voltage (V) | 18V |
| Varistor Voltage @1mA (V) | 22V |
| Max Peak Current @8/20uS (A) | 250A |
| Max Energy 10/1000 uS (J) | 1.1 |
| Rated Power (W) | 0.02W |
| Typical Capacitance @ 1kHz (pF) | 2300F |
