XY142-04F

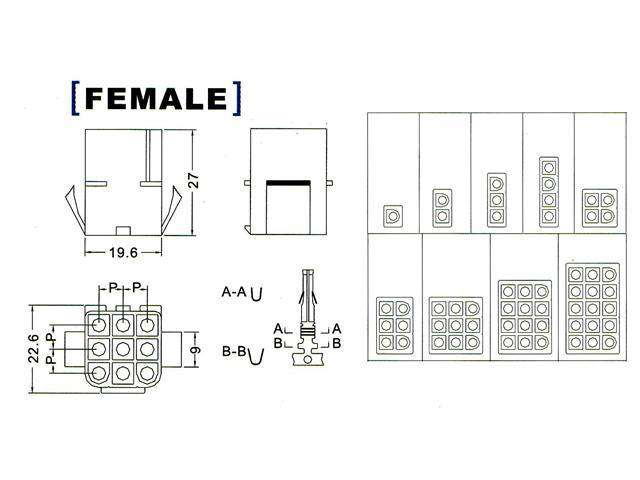

Square Female Connector with Release-Lock • 6.2mm • 4 way • 11A-300VAC
Overview
Features
- Housing : Nylon UL94V-2
- Contact : Phosphor Bronze (Tin Plated)
Specification
| Gender | Female |
| No. of Contacts | 4 |
| No. of Pins | 4 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 6.2mm |
| Contact Resistance | 10 mΩ max |
| Insulator Resistance | 1000 MΩ min |
| Dielectric Strength | AC 1500V for 1 minute |
| Electrical Rating | 11A-300VAC |
$0.46
XY142-04F—
$0.46
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Square Female Connector with Release-Lock • 6.2mm • 4 way • 11A-300VAC
Overview
Features
- Housing : Nylon UL94V-2
- Contact : Phosphor Bronze (Tin Plated)
Specification
| Gender | Female |
| No. of Contacts | 4 |
| No. of Pins | 4 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 6.2mm |
| Contact Resistance | 10 mΩ max |
| Insulator Resistance | 1000 MΩ min |
| Dielectric Strength | AC 1500V for 1 minute |
| Electrical Rating | 11A-300VAC |
