1 / 4
XY135-10HT

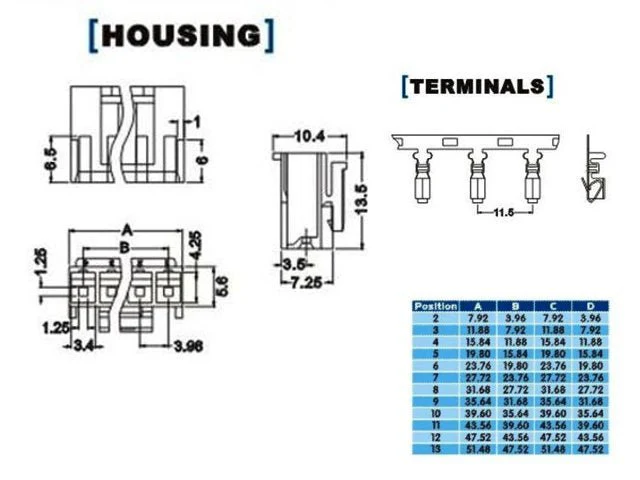

In-line Housing Locking with Terminals • 3.96mm • 10 way • Mates with : XY-135-10ST & XY-135-10RT
Feature(s)
- 3.96mm Wire to Board Series
- Locking, In-Line Housing with Terminals
- Mates with B(x)P-VH-E & B(x)PS-VH-E
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Additional Information
| Device | In-line Housing Locking with Terminals |
| No. of Contacts | 10 |
| No. of Pins | 10 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-10ST & XY-135-10RT |
$0.16
Original: $0.54
-70%XY135-10HT—
$0.54
$0.16Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
In-line Housing Locking with Terminals • 3.96mm • 10 way • Mates with : XY-135-10ST & XY-135-10RT
Feature(s)
- 3.96mm Wire to Board Series
- Locking, In-Line Housing with Terminals
- Mates with B(x)P-VH-E & B(x)PS-VH-E
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Additional Information
| Device | In-line Housing Locking with Terminals |
| No. of Contacts | 10 |
| No. of Pins | 10 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-10ST & XY-135-10RT |
