XY135-05HT

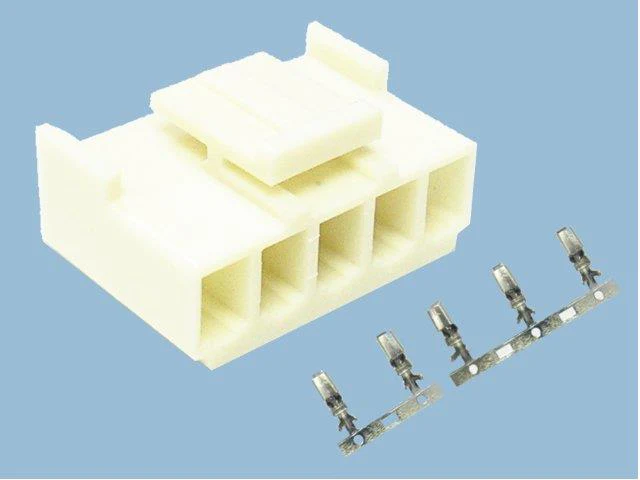

In-line Housing Locking with Terminals • 3.96mm • 5 way • Mates with : XY-135-05ST & XY-135-05RT
Feature(s)
- 3.96mm Wire to Board Series
- Locking, In-Line Housing with Terminals
- Mates with B(x)P-VH-E & B(x)PS-VH-E
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Additional Information
| Device | In-line Housing Locking with Terminals |
| No. of Contacts | 5 |
| No. of Pins | 5 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-05ST & XY-135-05RT |
$0.08
Original: $0.26
-69%XY135-05HT—
$0.26
$0.08Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
In-line Housing Locking with Terminals • 3.96mm • 5 way • Mates with : XY-135-05ST & XY-135-05RT
Feature(s)
- 3.96mm Wire to Board Series
- Locking, In-Line Housing with Terminals
- Mates with B(x)P-VH-E & B(x)PS-VH-E
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Additional Information
| Device | In-line Housing Locking with Terminals |
| No. of Contacts | 5 |
| No. of Pins | 5 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-05ST & XY-135-05RT |
