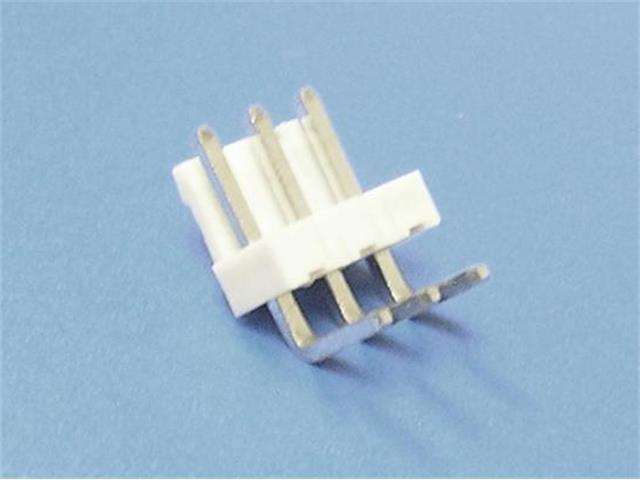

XY135-03RT
SIL Header Right Angle Type • 3.96mm • 3 way • Mates with : XY-135-03HT
Overview
Features
- 3.96mm Wire to Board Series
- Locking, Right Angle Type
- Mates with XY-135-03HT
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Specification
| No. of Contacts | 3 |
| No. of Pins | 3 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-03HT |
$0.03
Original: $0.09
-67%XY135-03RT—
$0.09
$0.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SIL Header Right Angle Type • 3.96mm • 3 way • Mates with : XY-135-03HT
Overview
Features
- 3.96mm Wire to Board Series
- Locking, Right Angle Type
- Mates with XY-135-03HT
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Specification
| No. of Contacts | 3 |
| No. of Pins | 3 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-03HT |
