XY-USB151

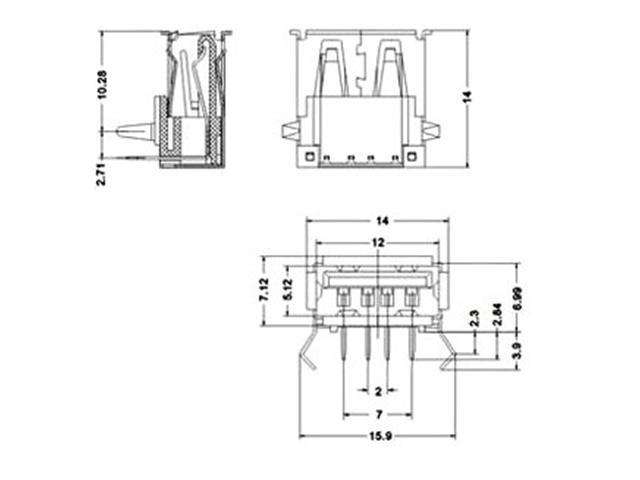

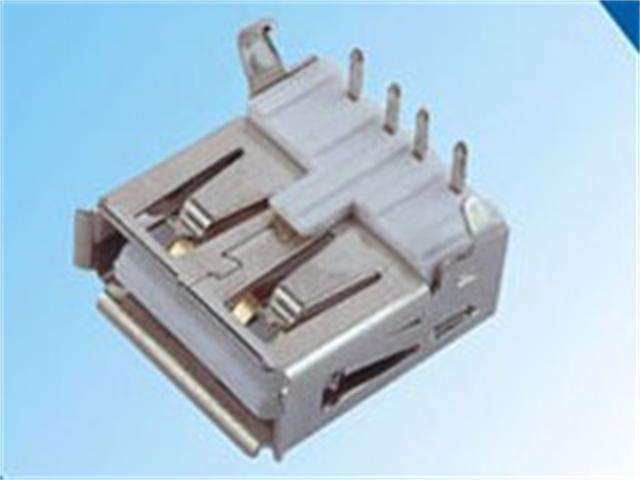

USB āAā Type Connector Right Angle PCB
Overview
Features
Specification
Ā
| Contact Resistance | 30 mĪ© max |
| Insulator Resistance | 1000 MĪ© min. @DC 500V |
| Current Rating | 1 A |
| Voltage Rating | 30V AC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Phosphor Bronze |
| Housing | PBT & 30% Glass Fiber (UL94V-0) |
$0.10
Original: $0.35
-71%XY-USB151ā
$0.35
$0.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
USB āAā Type Connector Right Angle PCB
Overview
Features
Specification
Ā
| Contact Resistance | 30 mĪ© max |
| Insulator Resistance | 1000 MĪ© min. @DC 500V |
| Current Rating | 1 A |
| Voltage Rating | 30V AC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Phosphor Bronze |
| Housing | PBT & 30% Glass Fiber (UL94V-0) |
