XY-RSTS8X-RSTS8X-478/15M-ECN

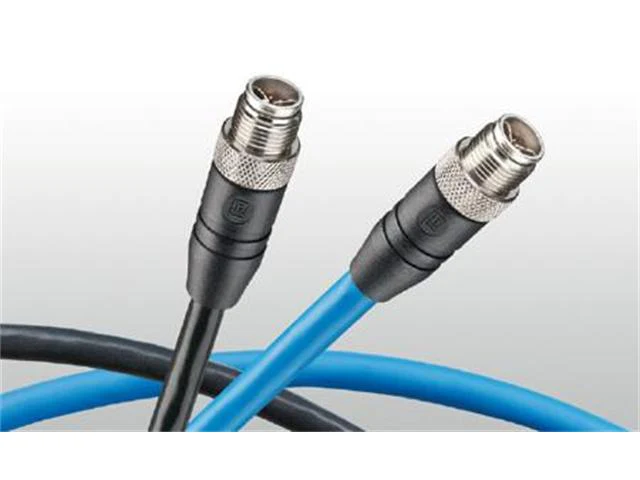

Cordset Shielded M12 X-Coded Male Straight. 8 Pole – Male Straight. 8 Pole Screw Lock - 15m PUR Cable
Cordset Shielded M12 X-Coded Male Straight
Overview
These robust x-coded M12 cord sets are a direct result of the growing use of supervisional systems featuring HD-video surveillance, high-end vision sensors, etc., requiring reliable, high-volume communication.
Feature(s)
- Data transfer rate of up to 10 Gbit/s
- Meets IP67 protection degree rating
- Operates at a temperature range from -40 °C to +85 °C
- Meets IP67 protection rating
- Rail-approved version (BRSTS 8X-552/...M) meets DIN EN 50155 (in accordance), DIN EN 45545-2, DIN EN 50467, DIN EN 61373
- UL-approved version (RSTS 8X-478/…M)
- 360° shielding connected to knurled screw
- Works seamlessly with Belden and Hirschmann industrial Ethernet products: 0986 EMC 600, M12 receptacle 0986 EFC 651 and OCTOPUS switches, among other products
Downloads
Additional Information
| Device | Connector |
| Type | Male | Straight | 8 Pole | Screw Lock | 15m | PUR Cable |
$42.67
Original: $142.25
-70%XY-RSTS8X-RSTS8X-478/15M-ECN—
$142.25
$42.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Cordset Shielded M12 X-Coded Male Straight. 8 Pole – Male Straight. 8 Pole Screw Lock - 15m PUR Cable
Cordset Shielded M12 X-Coded Male Straight
Overview
These robust x-coded M12 cord sets are a direct result of the growing use of supervisional systems featuring HD-video surveillance, high-end vision sensors, etc., requiring reliable, high-volume communication.
Feature(s)
- Data transfer rate of up to 10 Gbit/s
- Meets IP67 protection degree rating
- Operates at a temperature range from -40 °C to +85 °C
- Meets IP67 protection rating
- Rail-approved version (BRSTS 8X-552/...M) meets DIN EN 50155 (in accordance), DIN EN 45545-2, DIN EN 50467, DIN EN 61373
- UL-approved version (RSTS 8X-478/…M)
- 360° shielding connected to knurled screw
- Works seamlessly with Belden and Hirschmann industrial Ethernet products: 0986 EMC 600, M12 receptacle 0986 EFC 651 and OCTOPUS switches, among other products
Downloads
Additional Information
| Device | Connector |
| Type | Male | Straight | 8 Pole | Screw Lock | 15m | PUR Cable |
