XY-FW170

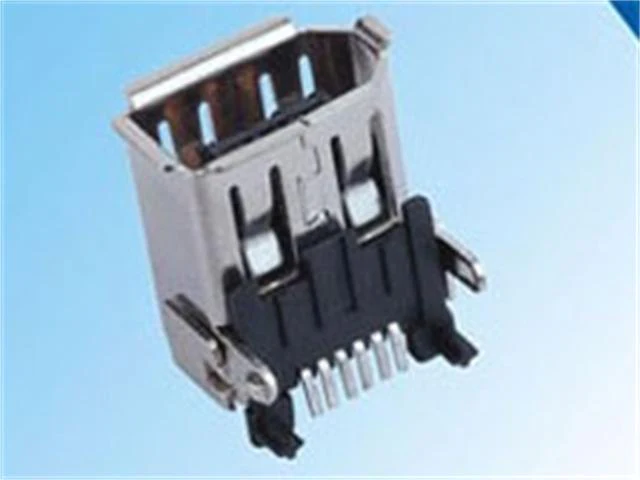

Fire Wire 6-Pin SMD Connector Type IEEE1394 (JEM-6)
Additional Information
| Group | Network Connectors |
| Device | Connector |
| Type | Fire Wire |
| Highlights | Type IEEE1394 (JEM-6) |
| Contact Resistance | 2 mΩ max |
| Insulator Resistance | 1000 MΩ min. @DC 500V |
| Current Rating | 2 A |
| Voltage Rating | 30V AC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Copper Alloy |
| Housing | Thermoplastic (UL94V-0) |
$0.18
Original: $0.61
-70%XY-FW170—
$0.61
$0.18Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fire Wire 6-Pin SMD Connector Type IEEE1394 (JEM-6)
Additional Information
| Group | Network Connectors |
| Device | Connector |
| Type | Fire Wire |
| Highlights | Type IEEE1394 (JEM-6) |
| Contact Resistance | 2 mΩ max |
| Insulator Resistance | 1000 MΩ min. @DC 500V |
| Current Rating | 2 A |
| Voltage Rating | 30V AC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Copper Alloy |
| Housing | Thermoplastic (UL94V-0) |
