WVS SERIAL BUS SERVO BUCK ADAPTE
Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator

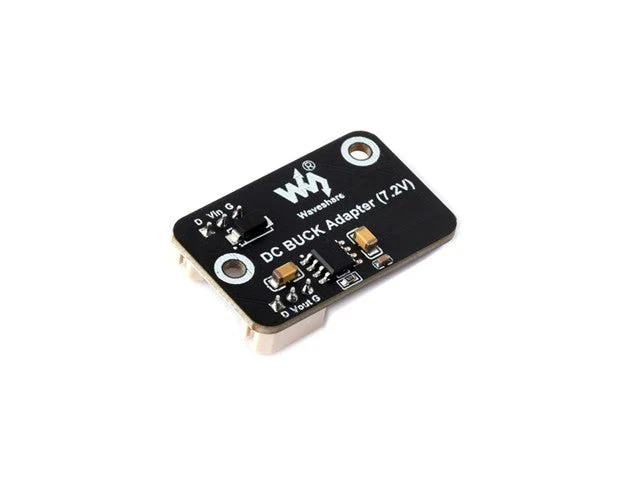

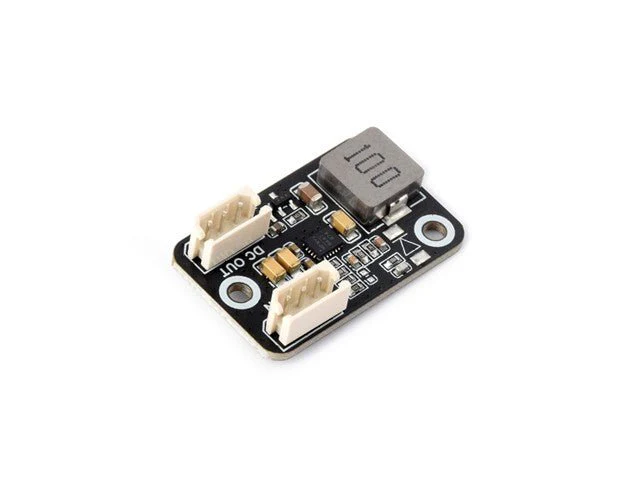

Serial Bus Servo DC Buck Adapter
Features
- 7.2V buck regulator, suitable for the servos such as SC15 Servo and SC09 Servo
- Mini size, more space-saving, easy to integrate into the projects
- 9~36V wide voltage input for more flexible project power selection
- Simply connect it in series in the servo circuit to use
Specifications
| INPUT VOLTAGE | DC 9~36V |
|---|---|
| OUTPUT VOLTAGE | DC 7.2V |
| INTERFACE | SC/ST series servo 5264-3P header |

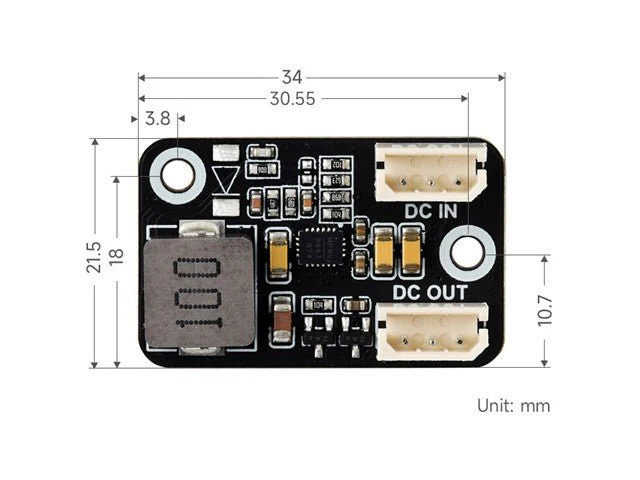

| DIMENSIONS | 21.50 × 34.00mm |
| MOUNTING HOLE SIZE | 2.70mm |
| PEAK CURRENT | 3A |
Additional Information
| Device | Buck Adapter |
| Type | Serial Bus | Servo | DC |
| References |
