WVS LUCKFOX PICO MAX LINUX BORD
Luckfox Pico Max RV1106 Linux Micro Development Board, Integrates ARM CORTEX-A7/RISC-V MCU/NPU/ISP Processors. Adopts RV1106G3, Onboard 256MB Memory

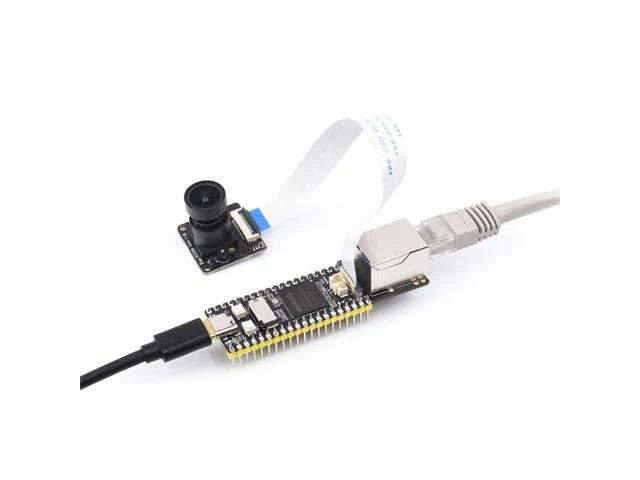

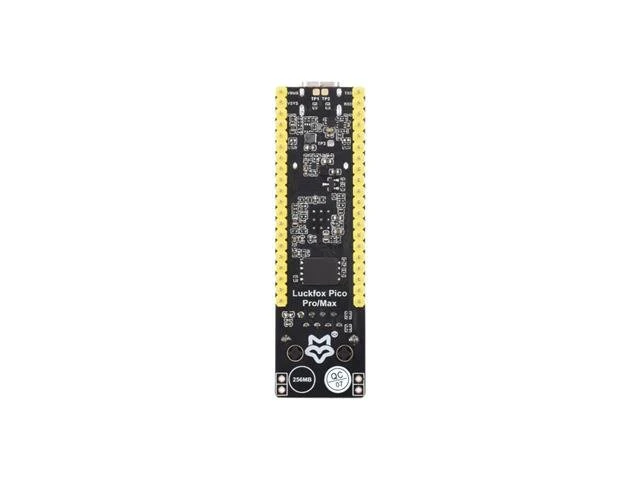

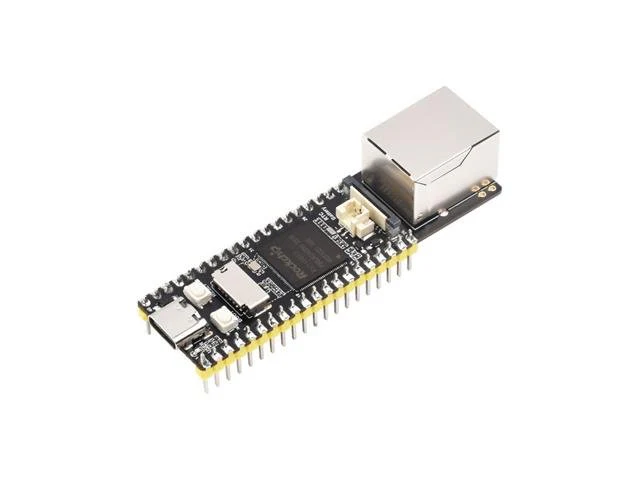

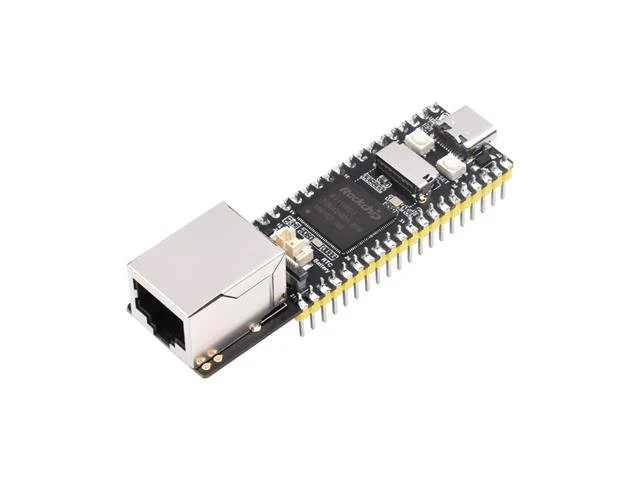

Pico Max RV1106 Linux Micro Development Board
Features
- ingle-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G2 is 0.5 TOPS, and RV1106G3 is 1.0 TOPS
- Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
- Integrated with built-in POR, audio codec and MAC PHY
Specifications
| Processor | CortexĀ [email protected] |
| NPU | Pro: 0.5TOPS, supports int4, int8 and int16 Max: 1TOPS, supports int4, int8 and int16 |
| ISP | Input 5M @30fps (Max) |
| Memory | Pro: 128MB DDR3L Max: 256MB DDR3L |
| USB | USB 2.0 Host/Device |
| Camera | MIPI CSI 2-lane |
| GPIO | 26 Ć GPIO pins |
| Ethernet port | 10/100M Ethernet controller and embedded PHY |
| Default Storage | SPI NAND FLASH (256MB) |
Additional Information
| Device | Development Board |
| Type | Pico Max | RV1106 | Linux | Micro |
