• Contact Material : Silver
• Mount : Through Hole
• Number of Pins : 8

Technical

• Coil Current : 21.82 mA
• Coil Resistance : 1.1 kΩ
• Coil Voltage (AC) : 24 V
• Coil Voltage (DC) : 24 V
• Contact Current Rating : 16 A
• Max Current Rating : 16 A
• Max Operating Temperature : 75 °C
• Max Voltage Rating (AC) : 380 V
• Max Voltage Rating (DC) : 150 V
• Min Operating Temperature : -40 °C
• Operate Time : 15 ms
• Power Consumption : 530 mW
• Resistance : 1.1 kΩ
• Termination : PC Pin
• Throw Configuration : SPDT
• Voltage Rating (AC) : 380 V

Dimensions

• Depth : 12.9 mm
• Length : 29.2 mm

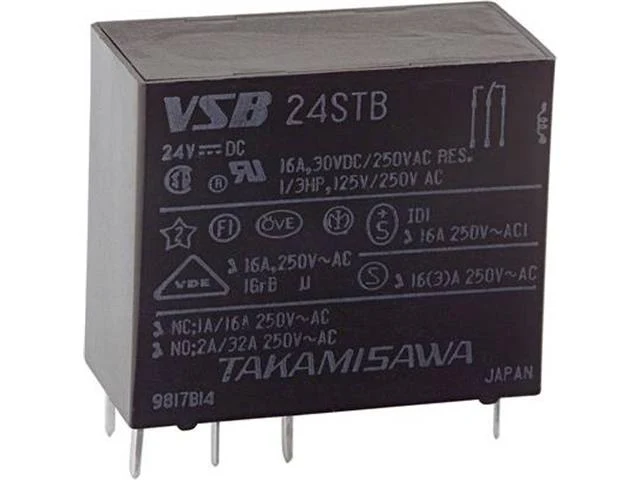

Device	Relay
Type	PCB | Sealed
