VELLEMAN K1803

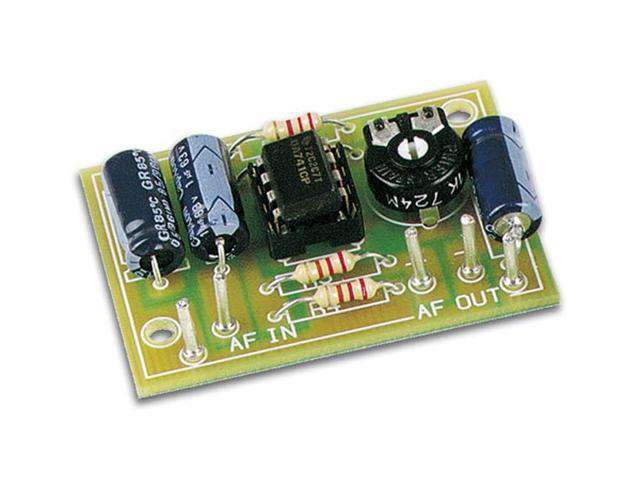

Product image 1

VELLEMAN K1803

Universal Mono Pre-Amplifier Kit
• Function Group : Audio / Amplifiers etc.

Overview

This kit was developed as pre-module for a number of audio applications where the input signal is too weak. Applications as a microphone pre-amplifier or for level correction.

Features

Specification

  • power supply: 10-30VDC / 10mA
  • output impedance: 1Kohm
  • adjustable output level: max. 40dB
  • frequency range: 20Hz to 20kHz ± 3dB
  • max. input signal: 40mV
  • PCB dimensions: 30 x 44mm / 1.2 x 1.7"
$3.04

Original: $10.12

-70%
VELLEMAN K1803—

$10.12

$3.04

Product Information

Shipping & Returns

Description

Universal Mono Pre-Amplifier Kit
• Function Group : Audio / Amplifiers etc.

Overview

This kit was developed as pre-module for a number of audio applications where the input signal is too weak. Applications as a microphone pre-amplifier or for level correction.

Features

Specification

  • power supply: 10-30VDC / 10mA
  • output impedance: 1Kohm
  • adjustable output level: max. 40dB
  • frequency range: 20Hz to 20kHz ± 3dB
  • max. input signal: 40mV
  • PCB dimensions: 30 x 44mm / 1.2 x 1.7"
