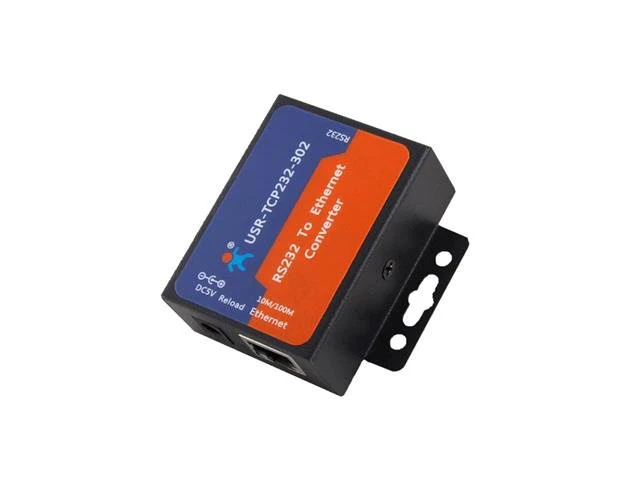

USR TCP232-302 SERIAL-ETHERNET
1 Port RS232 to Ethernet Converter USR-TCP232-302, Which can transmit data transparently between TCP/IP and RS232. RS232 to IP Converter USR-TCP232-302 is used in Industrial Automation
1 Port RS232 to Ethernet Converter
Features
- Single RS232 to ethernet converters
- Low-cost Solution
- RS232 port
- Power supply: DC 4.75-7V
- Compact, Light Weight
- Supports TCP server/client, UDP server/client
- Virtual COM
Specifications
| Categories | Cellular & Network Communication |
|---|---|
| Manufacturer/Brand | USR IOT |
| Series | USR-TCP232 |
| Ethernet ports | 1 |
| Ethernet Protocols | 10/100 Mbps |
| Comm. Method | Ethernet, Serial |
| Comm. Protocol | ARP, DHCP, DNS, HTTP, ICMP, IP, TCP, UDP |
| Supply Voltage | 4.75~7 Vdc |
| Operating Temperature | -25° to 75°C, -13° to 167°F |
| Width (in) | 2.80 |
| Depth (in) | 2.36 |
| Height (in) | 0.97 |
| Width (mm) | 71.00 |
| Depth (mm) | 71.00 |
| Height (mm) | 71.00 |
| Weight (kg) | 0.200 |
| Weight (lbs) | 0.44 |
| Safety | CE, FCC, RoHS |
Downloads
Additional Information
| Device | Converter |
| Type | 1 Port RS232 to Ethernet |
