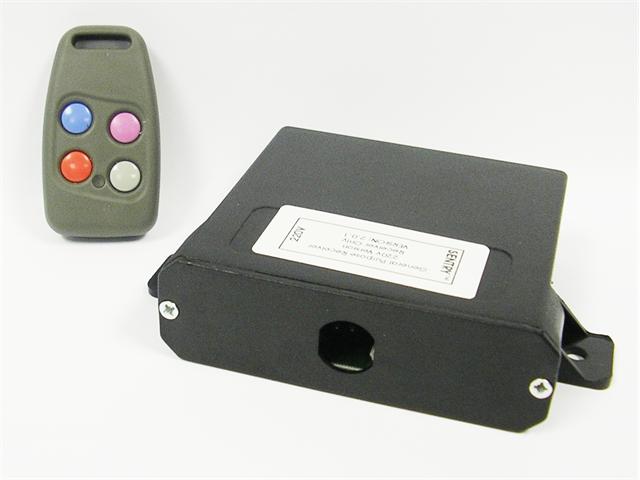

UNI433RX2-LT
General Purpose Receiver 220VAC 433.92MHz - Switchinng 2 Channel 5A 1 X TX4 Included
General Purpose Receiver
Specifications
- Transmission Frequency : 433.92MHz
- Modulation Format : ASK
- Protocol : Code Hopping
- Power Source : 16V AC or DC | 200~250V AC | 50~60Hz 1.5VA
- Relay Contacts : 5A @ 240V AC
- Dimensions : 90mm x 87mm x 31mm
- Mass : <373g
- Operating Temp Range : -30 to +55 degC
- Current Consumption (test supply 13.8VDC) : 10mA (idle) | 40mA ( Relay 1 active) | 70mA ( both Relay 1 & 2 active)
Downloads
Additional Information
| Device | Receiver |
| Type | 2 CH | 433MHz | 220V | General Purpose |
