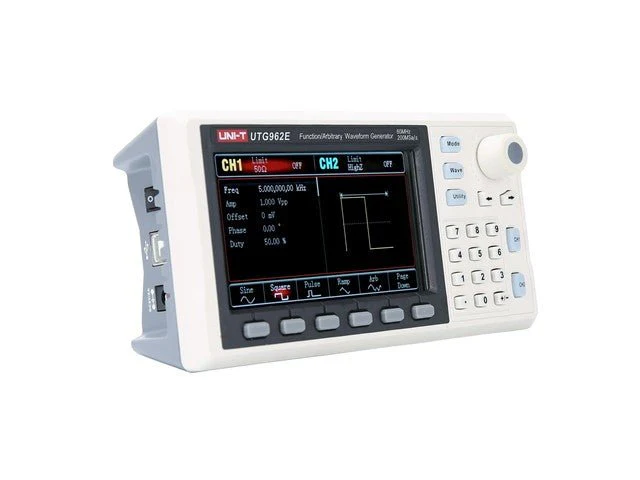

UNI-T UTG962E
Function/Arbitrary Waveform Generator 4.3”TFT LCD Screen, 2CH 60MHz, Sampling Rate 200MS/s, 14 bits, 172x90x68mm, 100~240VAC, 50Hz/60Hz, 3.8kg
Function/Arbitrary Waveform Generator
Overview
The UTG900E Series is a handheld mini economical, high performance,
arbitrary function waveform generator.It provides a unique and most
cost-effective solution for electronics enthusiasts with the minimum
resolution up to 1μHz, mini size and light weight to our most affordable
line of generators. Flexibly meet your testing needs in various scenarios,
and fully improve your work and learning efficiency.
Feature
- Max. Output Frequency: Reach new heights with a maximum output frequency of 60 MHz.
- Sample Rate: Achieve precision with a sample rate of 200 MSa/s.
- Vertical Resolution: Enjoy exceptional clarity with 14 bits of vertical resolution.
- Channels: Harness versatility with 2 independent channels at your disposal.
Specifications
| Model Number | UTG962E |
| Channels | 2Ch |
| Memory Depth | 4kpts |
| Frequency | 60MHz |
| Square/Pulse (Hz) | 20MHz |
| Vertical Resolution | 14 Bits |
| Waveforms | Sine Square Ramp Pulse Noise DC Arbitrary |
| # Built-in Arbs | 24 |
| Modulation Types | AM FM FSK PM |
| Sweep Modes | Linear Logarithmic |
| Frequency Counter | 100mHz - 100MHz |
| Display Size (in) | 4.3in |
| Touchscreen | No |
| Warranty | 3 years |
| Product Dimensions (L x W x H) | 7 in x 3 in x 4 in |
| Product Weight | 1 lb |
| Certifications | CE/cETLus/UKCA |
| Documents | English download guide |
| Included Accessories | Power adapter (5V/2A, including UL, CE adapter), USB to DC power cord |
| Standard Accessories | BNC straight-through cable, BNC to alligator clip cable |
Downloads
Additional Information
| Device | Generator |
| Type | Function/Arbitrary | Waveform |
