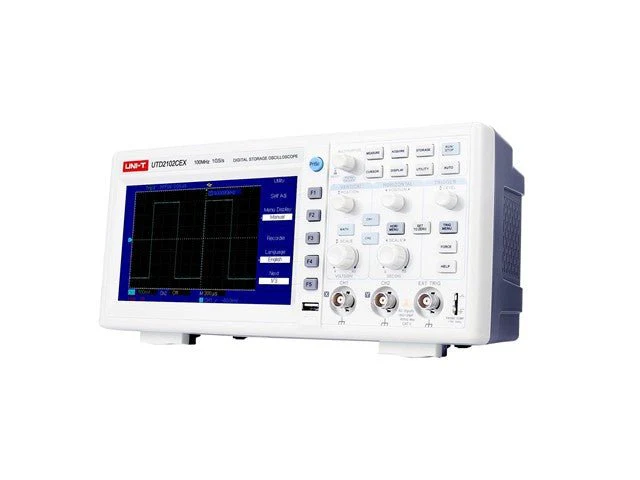

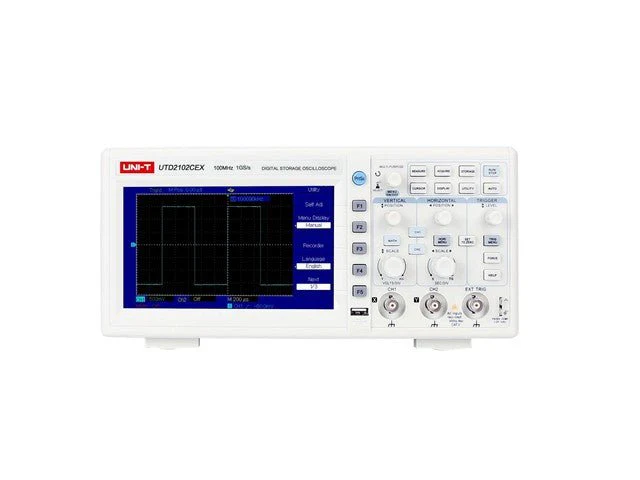

UNI-T UTD2102CEX+
Digital Storage Oscilloscope 2CH 100MHZ 7INCH TFT Colour Display 1G Sa/s, 1mV/div~20V/divG, Memory Depth 64kpts, USB Host, USB Device, Pass/Fail, (306×138× 124mm) 2.5Kg
Digital Storage Oscilloscope
Overview
For electrical engineers and electrical engineering professors who demand precision and versatility in waveform analysis, we present the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO). This advanced instrument is designed to meet your exacting standards, offering a wealth of features and capabilities that will take your waveform analysis tasks to the next level.
Features
- 50/100/200MHz bandwidth
- 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inch TFT LCD
- Supports plug-and-play USB storage device; communication with and remote control of computer through the USB device
Specifications
| Model Number | UTD2102CEX+ |
| Scope Type | DSO |
| Bandwidth | 100MHz |
| Channels | 2Ch |
| Scope Sample Rate | 1.0GSa/s |
| Memory Depth | 64kpts |
| Refresh Rate | 5,000wfms/s |
| Vertical Scale @1MΩ | 1V/div to 20V/div |
| # Automatic Measurements | 34 |
| Included Bus Protocols | None |
| Optional Bus Protocols | None |
| Logic Pod Included | Not Available |
| Signal Generator Function | Not Available |
| Frequency Meter | 6-bit |
| Display Size (in) | 7in |
| Touchscreen | No |
| Warranty | 3 years |
| Product Dimensions (L x W x H) | 12 in x 4 in x 5 in |
| Product Weight | 6 lb |
| Certifications | CE/cETLus/UKCA |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Oscilloscope probe (UT-P04)*2 |
| Standard Accessories | Power cord, USB2.0 printing cable |
Downloads
Additional Information
| Device | Oscilloscope |
| Type | Digital | Storage |
$149.64
Original: $498.79
-70%UNI-T UTD2102CEX+—
$498.79
$149.64Product Information
