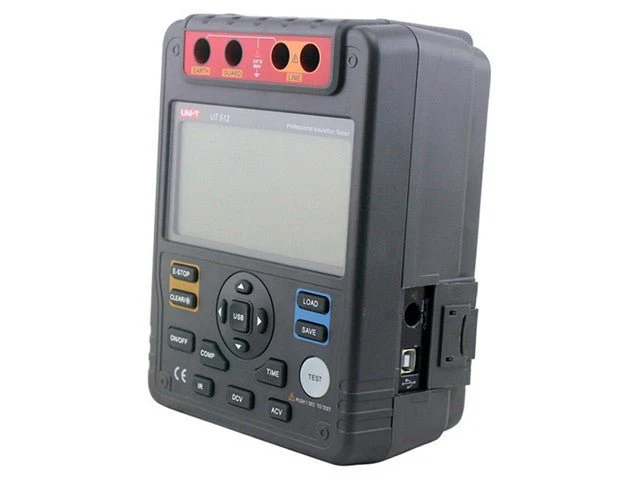

UNI-T UT512

Product image 1
1 / 3

UNI-T UT512

Insulation Resistance Tester 600V AC/DC Res Test Voltage 500/1000V/2500V, Auto Range Auto PWR OFF, Low Batt Indication, Data Storage18, Comparison, DAR, PI, USB Interface, LCD Backlight, Analogue Bar GRAPH30, Overload Indication, Timer

Insulation Resistance Tester

Specifications

Display count 9999
Measurement range and best precision
Insulation resistance (Ω) Voltage Range Accuracy Current
500 V 0.5 MΩ - 5.0 GΩ 100 KΩ - 100 MΩ ±(3%+5) 1 mA - 2 mA @(500 KΩ)
1000 V 2 MΩ - 10 GΩ 100 MΩ - 10 GΩ ±(5%+5) 1 mA - 2 mA @(1 MΩ)
1500 V 5 MΩ - 20 GΩ 10 GΩ - 100 GΩ ±(10%+5) 1 mA - 2 mA @(1.5 MΩ)
2500 V 10 MΩ - 100 GΩ   1 mA - 2 mA @(2.5 MΩ)
DC voltage 600 V   ±(2%+5)
AC voltage 600 V   <100 V ±(2%+8)
≥100 V ±(2%+5)
Resolution 1 V
Auto Range
 Yes
Other functionalities Backlight, Auto off, Timer, Data-hold (18 slots), USB interface
Power source 8 x 1.5V battery (LR14)
Dimensions 202 x 155 x 94 mm
Weight 2 kg

Downloads

Additional Information

Device Tester
Type Insulation | Resistance
