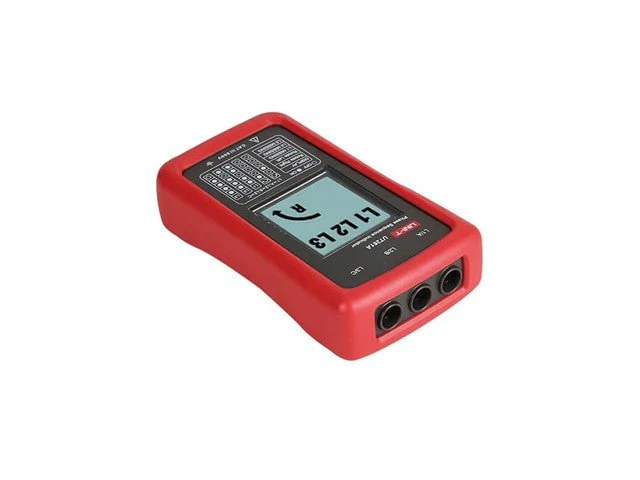

UNI-T UT261A
Phase Sequence & Motor Rotation Indicator 40V~690V 15Hz~400Hz (123x71x29mm) 160g
Phase Sequence & Motor Rotation Indicator
Features
- 1000A AC current measurement
- 1000V AC/DC voltage measurement
- 600A inrush current measurement (UT206A+)
- Temperature (UT206A+)
- NCV (UT206A+)
- ACV frequency 10Hz～10kHz
- Jaw opening: 45mm
- Resistance / capacitance / frequency measurement
- Auto range / backlight / low battery indication
- Continuity / diode / duty cycle
- MAX/MIN
- Data hold / flashlight / relative mode
- Auto power off
- CAT II 1000V/CAT III 600V
Specifications
| Specifications | Range | UT261A |
| AC voltage (V) | 90V~600V | |
| 40V~690V | Yes | |
| Frequency (Hz) | 15Hz~400Hz | Yes |
| Working current (A) | ＜1mA | |
| Features | ||
| Phase sequence indication | LCD | |
| Missing phase indication | LCD | |
| Motor rotation indication | ||
| General Characterisitics | ||
| Power | UT261A: No battery required | |
| Product color | Red and grey | |
| Product net weight | 160g | |
| Product size | 123mm x 71mm x 29mm | |
| Standard individual packing | Gift box, English manual, carrying bag | |
| Standard carton measurement | 450mm x 325mm x 340mm | |
Downloads
Additional Information
| Device | Indicator |
| Type | Phase Sequence | Motor Rotation |
