1 / 5

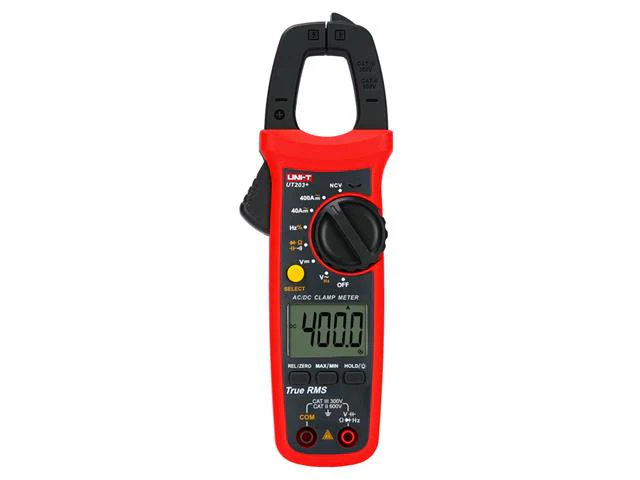

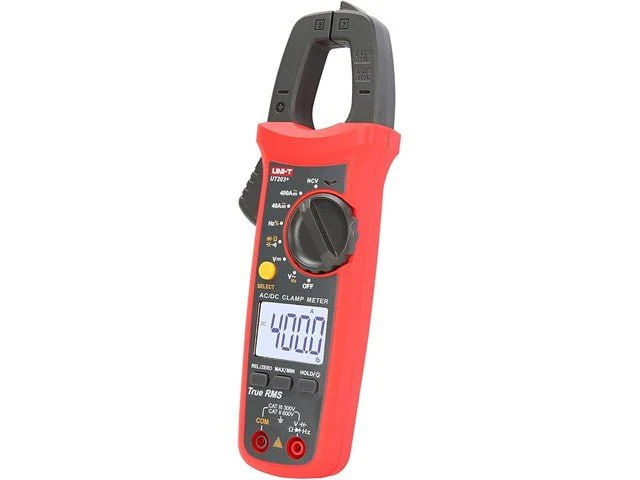

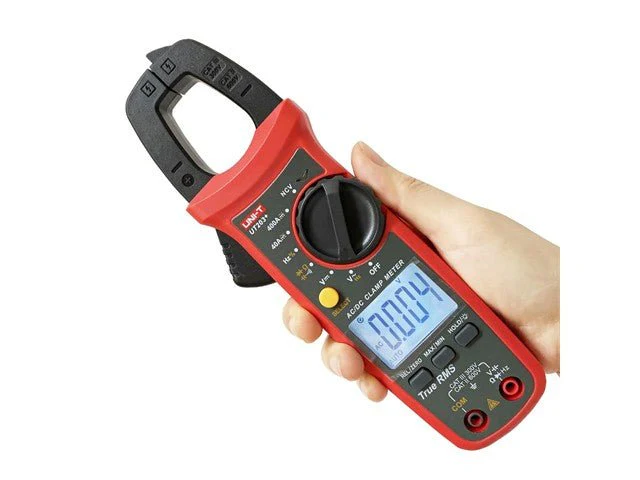

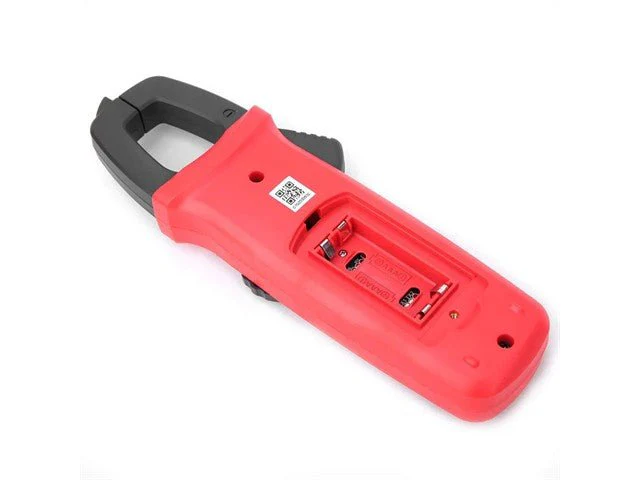

UNI-T UT203+
Clamp Meter Digital 600V AC/DC 400A AC/DC Resistance 40m, Cap:40MF,FREQ:10Hz~10MHZ, Display Count 4000, Auto Range, Jaw Capacity 28mm, True RMS, Diode, Auto Power Off, Continuity Test, Low Bat Indication, Data Hold, NCV, CATII 600V CATIII 300V
Digital Clamp Meter 600V
Features
- AC current (A):
- 400A : ±(2.5%+5)
- 600A
- AC current frequency (Hz) : 50Hz~100Hz
- DC current (A) : 400A : ±(2.5%+5)
- 600A
- AC voltage (V) : 600V : ±(0.8%+5)
- AC voltage frequency(Hz) : 10Hz~10kHz
- 10Hz~60kHz : ±(0.5%+2)
- DC voltage (A) : 600V : ±(0.5%+2)
- Resistance (Ω) : 40MΩ : ±(0.8%+2)
- 60MΩ
- Capacitance (F) : 4mF
- 40mF : ±(4%+5)
- 60mF
- Temperature (°C) : -40°C~1000°C
- Frequency (Hz) : 10Hz~10MHz ±(0.1%+4)
- Auto range : Yes
- Jaw opening : 28mm
- True RMS : Yes
- NCV : Yes
- Live wire test
- Continuity test : Yes
- Diode : Yes
- MAX/MIN : Yes
- Relative mode : Yes
- Zero mode : Yes
- Data hold : Yes
- Low battery indication : Yes
- Auto power off : Yes
- Power : 1.5V battery (R03) x 2
- Display : 37mm x 25mm
- Product color : Red and grey
- Product net weight : 235g
- Product size : 215mm x 63mm x 36mm
General Characterisitics
Downloads
Additional Information
| Device | Clamp Meter |
| Type | Digital | 600V |
$91.31
UNI-T UT203+—
$91.31
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Clamp Meter Digital 600V AC/DC 400A AC/DC Resistance 40m, Cap:40MF,FREQ:10Hz~10MHZ, Display Count 4000, Auto Range, Jaw Capacity 28mm, True RMS, Diode, Auto Power Off, Continuity Test, Low Bat Indication, Data Hold, NCV, CATII 600V CATIII 300V
Digital Clamp Meter 600V
Features
- AC current (A):
- 400A : ±(2.5%+5)
- 600A
- AC current frequency (Hz) : 50Hz~100Hz
- DC current (A) : 400A : ±(2.5%+5)
- 600A
- AC voltage (V) : 600V : ±(0.8%+5)
- AC voltage frequency(Hz) : 10Hz~10kHz
- 10Hz~60kHz : ±(0.5%+2)
- DC voltage (A) : 600V : ±(0.5%+2)
- Resistance (Ω) : 40MΩ : ±(0.8%+2)
- 60MΩ
- Capacitance (F) : 4mF
- 40mF : ±(4%+5)
- 60mF
- Temperature (°C) : -40°C~1000°C
- Frequency (Hz) : 10Hz~10MHz ±(0.1%+4)
- Auto range : Yes
- Jaw opening : 28mm
- True RMS : Yes
- NCV : Yes
- Live wire test
- Continuity test : Yes
- Diode : Yes
- MAX/MIN : Yes
- Relative mode : Yes
- Zero mode : Yes
- Data hold : Yes
- Low battery indication : Yes
- Auto power off : Yes
- Power : 1.5V battery (R03) x 2
- Display : 37mm x 25mm
- Product color : Red and grey
- Product net weight : 235g
- Product size : 215mm x 63mm x 36mm
General Characterisitics
Downloads
Additional Information
| Device | Clamp Meter |
| Type | Digital | 600V |
