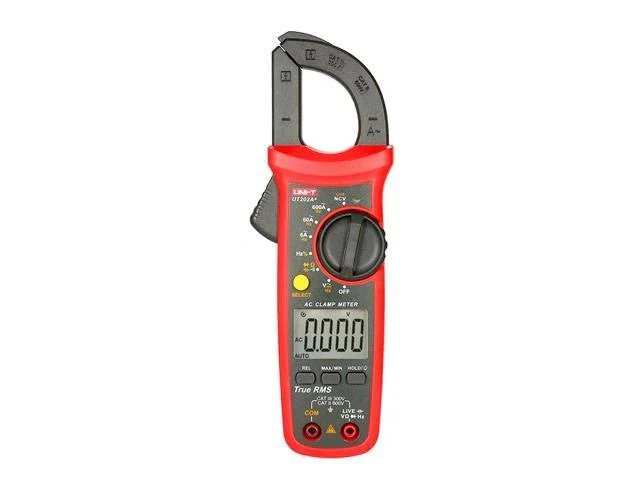

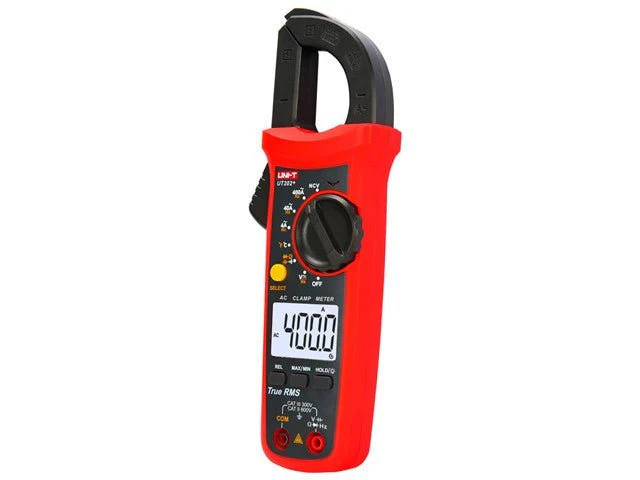

UNI-T UT202A+
Clamp Meter Digital 600V AC/DC 600A AC Resistance 60MΩ, FREQ:10Hz~10MHz, CAP:60mF, Display Count 6000, Auto Range, Jaw Capacity 28mm, Diode, Data Hold, NCV, Auto Power Off, Continuity Test, Low Bat Indication, CATIII 300V
Clamp Meter Digital 600V
Features
- True RMS
- LCD backlight
- Large screen and display digits
- 60mF large capacitance measurement (UT202A+/UT204+)
- Neutral/live wire test (UT202A+/UT204+)
Specifications
| Specifications | Range | UT202A+ |
| AC current (A) | 400A | |
| 600A | ±(2%+10) | |
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) |
| DC current (A) | 400A | |
| 600A | ||
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) |
| 10Hz~60kHz | ||
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | |
| 60MΩ | ±(0.8%+2) | |
| Capacitance (F) | 4mF | |
| 40mF | ||
| 60mF | ±(4%+5) | |
| Temperature (℃) | -40℃~1000℃ | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Features | ||
| Display count | 6000 | |
| Auto range | Yes | |
| Jaw opening | 28mm | |
| True RMS | Yes | |
| NCV | Yes | |
| Live wire test | Yes | |
| Continuity test | Yes | |
| Diode | Yes | |
| MAX/MIN | Yes | |
| Relative mode | Yes | |
| Zero mode | ||
| Data hold | Yes | |
| Low battery indication | Yes | |
| Auto power off | Yes | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 248g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard accessories | Batteries, test leads, Themocouple | |
| Standard individual packing | Gift box, Carring bag, English manual | |
Additional Information
| Device | Clamp Meter |
| Type | Digital | 600V |
