UNI-T UDP6730
Programmable DC Power Supply 1CH 360W Resolution:10mV/1mA, O/P Voltage & Current: 0~40V / 0~30A, Display: 2.8Inch 4 Digit Display, RS-232, 255x87x174mm, 2.5kg
Programmable DC Power Supply
Feature
- Fully digital control
- Full scale high resolution:10 mV/1mA
- Low ripple and noise
- Software correction function
- Minimum overall dimension
- TFT LCD display
- Remote compensation

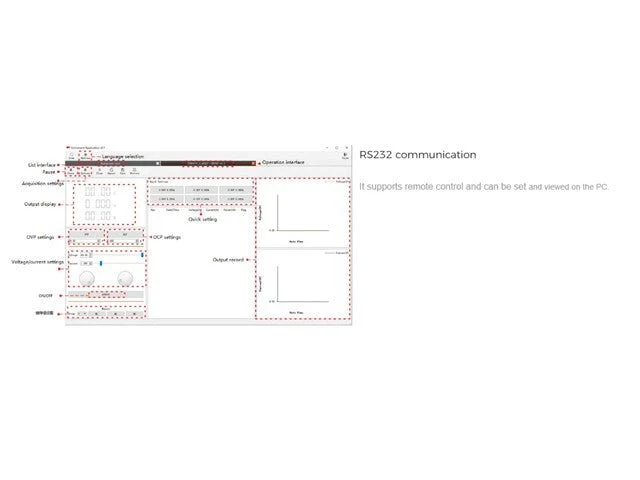

- Support RS232 communication
- Fan intelligent regulation
- Constant voltage and constant current output
- High reliability: overvoltage / overcurrent / overtemperature protection function
- List & delayer function
- The output is controlled by a switch
- High quality and high cost performance
- Multiple groups of output voltage / current can be preset: 3 Ă— 200 groups
Specifications
| Model Number | UDP6730 |
| Channels | 1Ch |
| Output Voltage | 0~40V |
| Output Current | 0~30A |
| Total Power | 360W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Connectivity | RS-232 |
| Setting Accuracy |
<0.1%+10mV <0.3%+30mA
|
| Programmable | true |
| Warranty | 3 years |
| Shipping Dimensions (W×H×D) | 87×174×255(mm) |
| Shipping Weight | 2.5Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord |
Downloads
Additional Information
| Device | Power Supply |
| Type | Programmable | DC |
