TTC05223KSY
ø5mm Radial Lead Disc NTC Thermistor for Temperature Sensing/Compensation with R25°C= 22kΩ, ±10% Tolerance
Overview
Features
- RoHS compliant
- Halogen-Free (HF) series are available

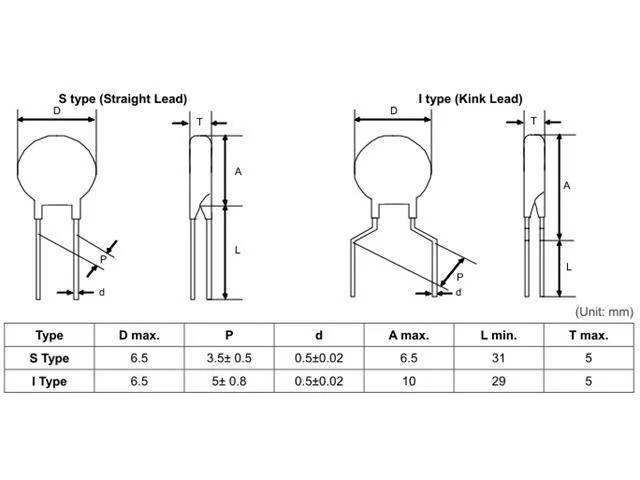

- Body size: ø5mm
- Radial lead resin coated
- Operating temperature range: -30~+125°C
- Wide resistance range
- Cost effective
- Agency recognition: UL / cUL / CSA / TUV / CQC
Specification
| Size | ø5mm |
| Termination | Radial |
| Tolerance | ±10% |
| Tolerance Code | K |
| Zero Power Resistance @ 25 degC | 22kΩ |
