TOP 100-124

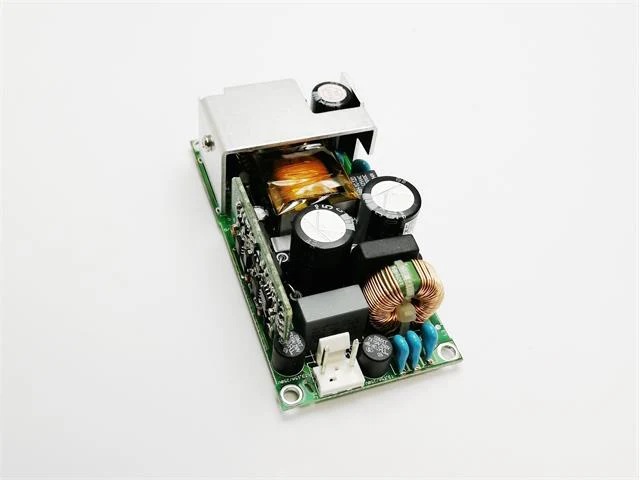

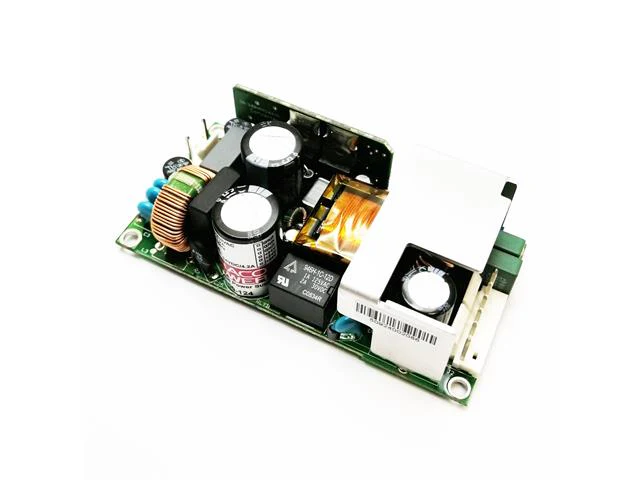

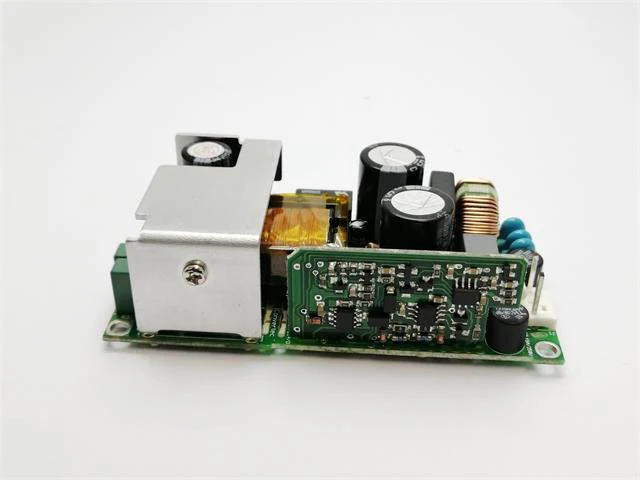

Switch Mode Power Supply Unit - Open Frame DC24V 4,2A (24 - 26V) TOP100-124
Switch Mode Power Supply Unit
Specifications
- Power Supply : Switched-mode
- Kind Of Power Supply : open
- Power : 100W
- Supply voltage : 90...132 / 187...264V AC
- Number of outputs : 1
- Output current : 4.2A
- Operating temperature : -25...70°C
- Mounting : for building in
- Efficiency : 90...92%
- Protection : overload, voltage growth, short-circuit

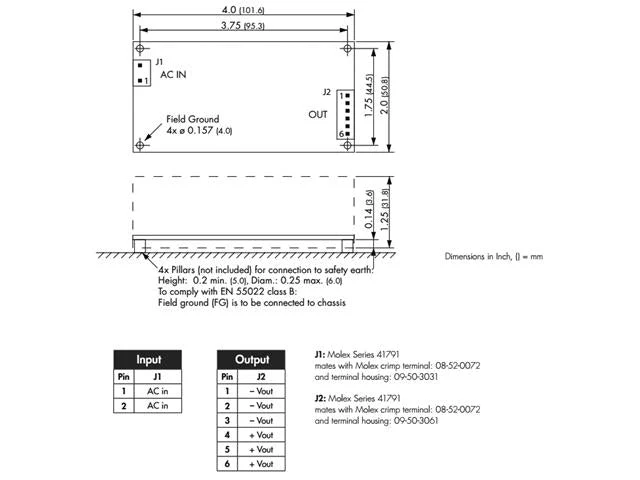

- Body dimensions : 101.6x50.8x31.8mm
- Electrical connection : plug with 3,96mm pitch
- Power supply/converter features : rated parameters obtained at full load
- Output voltage : 24V DC
- Gross weight : 140 g
Downloads
Additional Information
| Device | Power Supply Unit |
| Type | Switch Mode |
