TC0104X

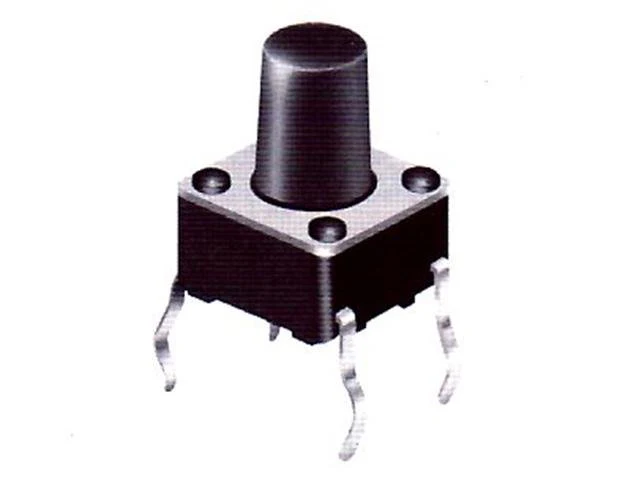

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 160gf • PCB • 6x6mm , Lever : 3.5mm
Ultra-Miniature Tactile Switch 50mA-12VDC
Downloads
Additional Information
| Device | Switch |
| Type | Tactile |
| Highlights | Ultra-Miniature |
| Transition Style | Momentary |
| Actuator Style | Push Button |
| Actuating Force | 160gf |
| Termination | PCB |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| No. of Pins | 4Pin |
| Case Length | 6mm |
| Case Width | 6mm |
| Lever Size | 3.5mm |
