SSR-25VA

Product image 1

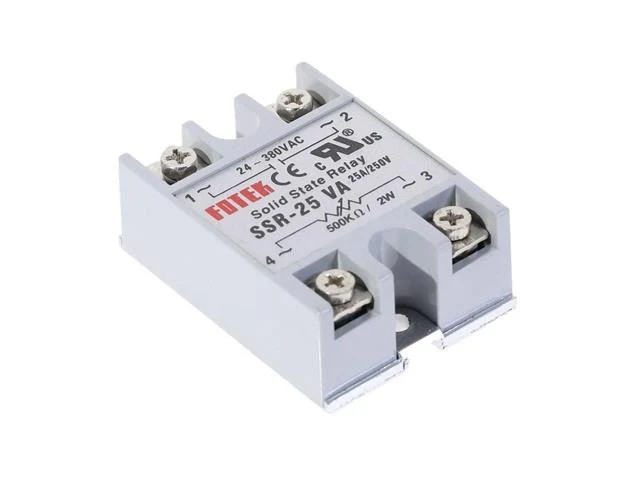

SSR-25VA

Solid State Relay 25A CV=0-470K Ohm 2W (On Voltage 1,5V) Load Voltage 0 - 480VAC Zero Cross.

25A Solid State Relay

Specifications

  • Load Current : 25A
  • Load Voltage : 24~380VAC
  • Rheostat power rating : 1/4 watts
  • On Voltage : 1.5VAC
  • Off Leakage Current : 2MA
  • On-off Time : 2MS
  • Dielectric Strength : 2500VAC
  • Insulation Resistance : 100M  /500VDC
  • Ambient Temperature : -25~+75°C
  • Work instruction : LED

Additional Information

Device Relay
Type 25A | Solid State
$13.51
SSR-25VA—
$13.51

Product Information

Shipping & Returns

Description

Solid State Relay 25A CV=0-470K Ohm 2W (On Voltage 1,5V) Load Voltage 0 - 480VAC Zero Cross.

25A Solid State Relay

Specifications

  • Load Current : 25A
  • Load Voltage : 24~380VAC
  • Rheostat power rating : 1/4 watts
  • On Voltage : 1.5VAC
  • Off Leakage Current : 2MA
  • On-off Time : 2MS
  • Dielectric Strength : 2500VAC
  • Insulation Resistance : 100M  /500VDC
  • Ambient Temperature : -25~+75°C
  • Work instruction : LED

Additional Information

Device Relay
Type 25A | Solid State
