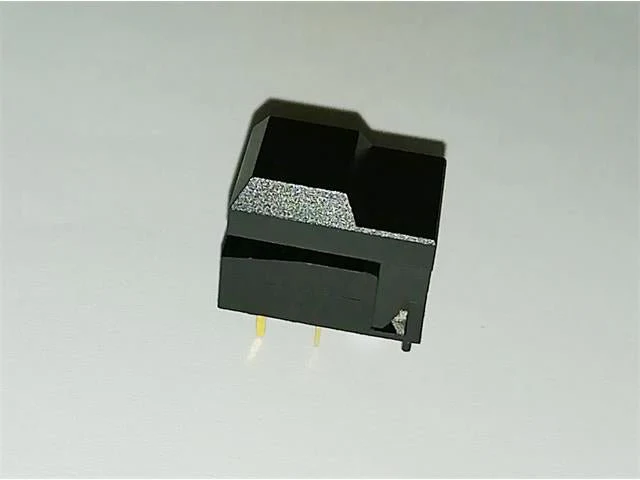

SP86A1 BLACK
Pushbutton Switch Snap-Action SPDT Momentary 12MA 24VDC OF=170gf +/- 50gf
Snap-Action SPDT Pushbutton Switch
Specifications
- Values : 5mA - 24Vcc (min. current of 1A)
- Initial contact resistance : 20mohm max. (AC 200V, 5mA)
- Dielectric resistance : 250Vca 1 minute (except between LED connections)
- Isolated resistance : 100Mohm (250Vcc megohmmeter)
- Electric life : 20,000 maneuvers (voltage and current name.)
- Static power : 1.5pF max. (1.5MHz)
- Shock resistance : 30G (3 perpendicular directions, 3 times)
- Working temperature : -25C to 75C
Additional Information
| Device | Switch |
| Type | Snap-Action | SPDT | Pushbutton |
$0.83
Original: $2.78
-70%SP86A1 BLACK—
$2.78
$0.83Product Information
