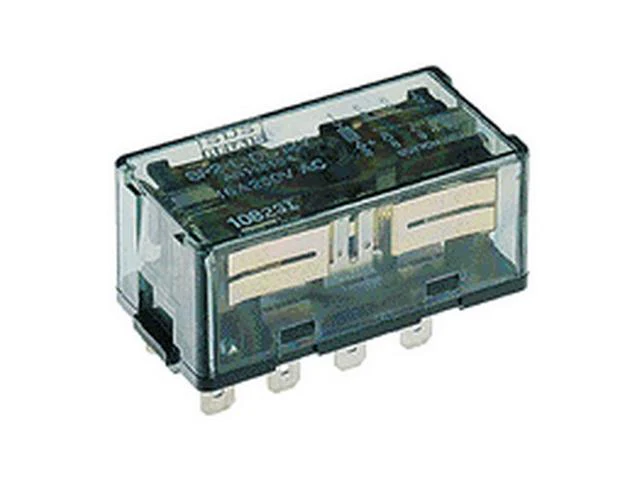

SP2P-DC24V
PCB Power Relay 2C/O 24VDC 15A 1K92R
Downloads
Additional Information
| Keywords | Relay 24V 10A |
| Model | SP2P-DC24V |
| Device | Relay |
| Type | Power |
| Contact Form | Form 2C |
| Size | 50x26x21mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 15A |
| Electrical Rating | 10A/30VDC/15A/250VAC |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
$6.67
Original: $22.25
-70%SP2P-DC24V—
$22.25
$6.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PCB Power Relay 2C/O 24VDC 15A 1K92R
Downloads
Additional Information
| Keywords | Relay 24V 10A |
| Model | SP2P-DC24V |
| Device | Relay |
| Type | Power |
| Contact Form | Form 2C |
| Size | 50x26x21mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 15A |
| Electrical Rating | 10A/30VDC/15A/250VAC |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
