SK459-25STS2XTO220
Extruded Heatsink for PCB Mounting for 2 x TO-220 • Rth= 7.9 K/W • Length : 25mm • Black Anodised surface
Features
for PCB Mounting with Solder pins
Specifications
- Way Of Fixation: Transistor Screw Mounting
- Width: 50 mm
- Height: 20 mm
- Plate Thickness: 3 mm
- Length: 25 mm
- Thermal Resistance: 7.9 K/W
- Mounting Method: With Solder Pin

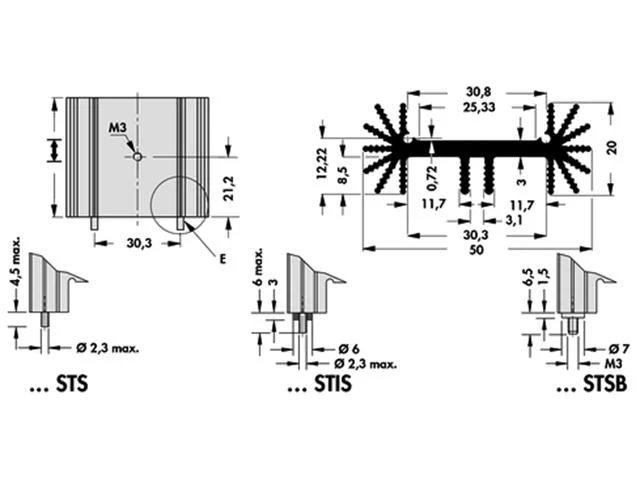

- Drilling Pattern:
- TO 218
- TO 220
- TO 247
- TO 248
- Surface: Black Anodised
Additional Information
| Group | Extruded for PCB Mounting |
| Device | Extruded Heatsink for PCB Mounting |
| Type | for 2 x TO-220 |
$7.47
