SCK15056MSY
ø15mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 5Ω, I25°C= 6A, ±20% Tolerance
Overview
Features
- RoHS & Halogen Free (HF) compliant
- Radial lead resin coated
- High power rating
- Wide resistance range
- Cost effective
- Operating temperature range :
- Agency recognition: UL / cUL / TUV / CSA / CQC
Specification

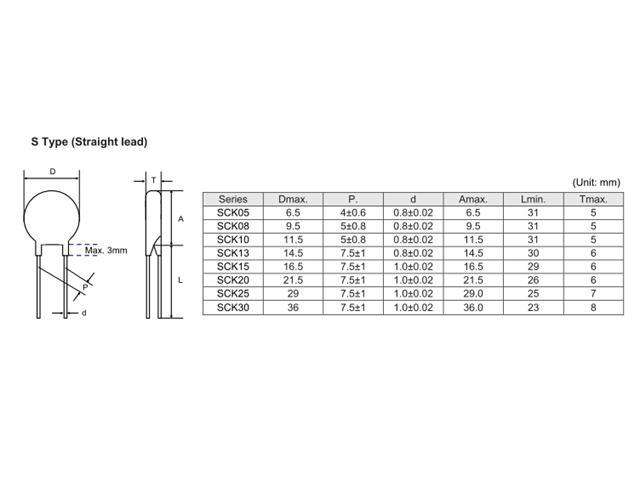

| Size | ø15mm |
| Termination | Radial |
| Tolerance | ±20% |
| Tolerance Code | M |
| Max Steady State Current @25 degC | 6A |
| Zero Power Resistance @ 25 degC | 5Ω |
Downloads
$0.10
Original: $0.34
-71%SCK15056MSY—
$0.34
$0.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ø15mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 5Ω, I25°C= 6A, ±20% Tolerance
Overview
Features
- RoHS & Halogen Free (HF) compliant
- Radial lead resin coated
- High power rating
- Wide resistance range
- Cost effective
- Operating temperature range :
- Agency recognition: UL / cUL / TUV / CSA / CQC
Specification
| Size | ø15mm |
| Termination | Radial |
| Tolerance | ±20% |
| Tolerance Code | M |
| Max Steady State Current @25 degC | 6A |
| Zero Power Resistance @ 25 degC | 5Ω |
