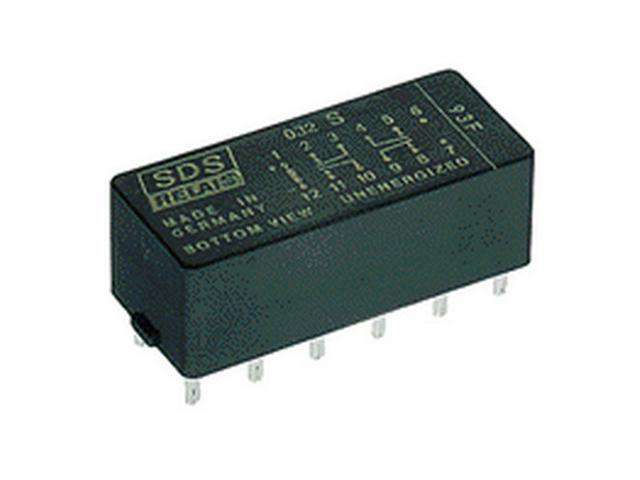

S4-L-6V
Medium Power Relay • Form 4A • VCoil= 6V DC • IMax Switching= 3A • RCoil= 180Ω • PCB • Low Profile Case
Overview
Features
Low Profile Case
Specification
| Model | S4-L-6V |
| Contact Form | Form 4A |
| Size Category | Std size |
| Size | 28x12x10mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 3A |
| Electrical Rating | 3A/30VDC/4A/250VAC |
| Coil Power | 200mW Power |
| Coil Resistance | 180Ω |
| Isolation Voltage | 1K5V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 12 Pin(s) |
| No. of Poles | 4 Pole(s) |
Downloads
$4.68
Original: $15.59
-70%S4-L-6V—
$15.59
$4.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Medium Power Relay • Form 4A • VCoil= 6V DC • IMax Switching= 3A • RCoil= 180Ω • PCB • Low Profile Case
Overview
Features
Low Profile Case
Specification
| Model | S4-L-6V |
| Contact Form | Form 4A |
| Size Category | Std size |
| Size | 28x12x10mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 3A |
| Electrical Rating | 3A/30VDC/4A/250VAC |
| Coil Power | 200mW Power |
| Coil Resistance | 180Ω |
| Isolation Voltage | 1K5V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 12 Pin(s) |
| No. of Poles | 4 Pole(s) |
