RSCW 8/9

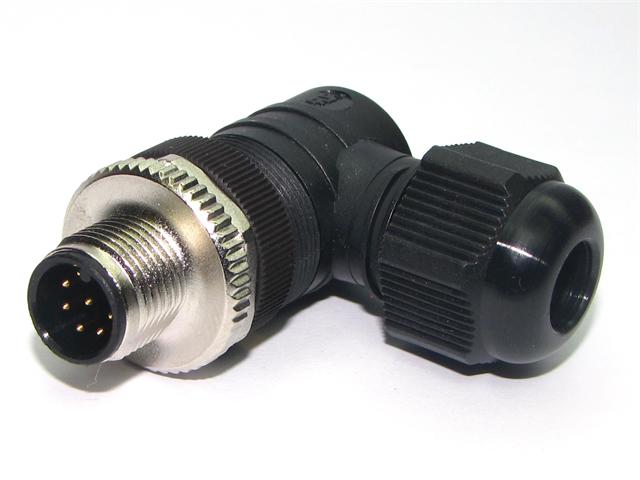

M12 Right Angle 8-Pin Male Connector
Shieldable Screw Connection,
4.0 to 8.0 mm (PG 9),
Suitable for 30V/2A,
IP 67, Plastic Housing (PBT), -25 to +95 °C
Overview
M12 Right Angle 8-Pin Male Connector
Shieldable Screw Connection,
4.0 to 8.0 mm (PG 9),
Suitable for 30V/2A,
IP 67, Plastic Housing (PBT), -25 to +95 °C
Specifications
Connector Size: M12
Connector Type: Right Angle Plug
Gender: Male
Number of Positions: 8
Termination Screw
Current Rating: 2A
Voltage Rating: 30V
IP Rating: IP67
Primary Type: M Series Automation
Series: RSCW Series
Type: M12
Wire Size: 20 AWG
Downloads
Additional Information
| Device | CONNECTOR |
| Type | M12 CONNECTOR | Right Angle | Male | 8 Position | Screw Terminal |
