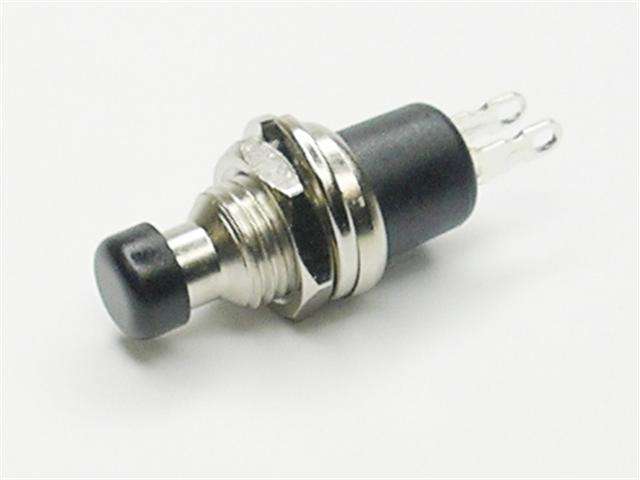

R18-29B2 BLACK
Miniature Push Button Switch • Momentary • Form : SPST-1-(0) • 3A-125 VAC • Solder Lug • Black-Button • Round Actuator • PTB
Overview
Features
Specification
- Rating: 3A 125VAC
- Contact Resistance: 30mO max.
- Insulation Resistance: DC 500V 100 MO min.
- Dielectric Strength: AC 1000V 1 minute
- Electrical Life: 30,000 cycles min
- Mechanical Life: 50,000 cycles min
- Terminal Material: Copper alloy, silver or gold plated
| Transition Style | Momentary |
| Actuator Style | Round |
| Termination | Solder-Lug |
| Switch Circuit | SPST-1-(0) |
| Electrical Rating | 3A-125 VAC |
| No.of Poles/Pins | 2Pin |
| Color | Black-Button |
| Size | Ø9.5mm |
$0.41
Original: $1.35
-70%R18-29B2 BLACK—
$1.35
$0.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Miniature Push Button Switch • Momentary • Form : SPST-1-(0) • 3A-125 VAC • Solder Lug • Black-Button • Round Actuator • PTB
Overview
Features
Specification
- Rating: 3A 125VAC
- Contact Resistance: 30mO max.
- Insulation Resistance: DC 500V 100 MO min.
- Dielectric Strength: AC 1000V 1 minute
- Electrical Life: 30,000 cycles min
- Mechanical Life: 50,000 cycles min
- Terminal Material: Copper alloy, silver or gold plated
| Transition Style | Momentary |
| Actuator Style | Round |
| Termination | Solder-Lug |
| Switch Circuit | SPST-1-(0) |
| Electrical Rating | 3A-125 VAC |
| No.of Poles/Pins | 2Pin |
| Color | Black-Button |
| Size | Ø9.5mm |
