R18-23B BLACK
Miniature Push Button Switch • Momentary • Form : SPST-0-(1) • 3A-125 VAC • Solder-Lug • Black-Button • Square Actuator
Overview
Features
Specification
- Rating: 3A 125VAC
- Contact Resistance: 30mO max.
- Insulation Resistance: DC 500V 100 MO min.
- Dielectric Strength: AC 1000V 1 minute
- Electrical Life: 30,000 cycles min
- Mechanical Life: 50,000 cycles min
- Terminal Material: Copper alloy, silver or gold plated
| Transition Style | Momentary |
| Actuator Style | Square |
| Termination | Solder-Lug |
| Switch Circuit | SPST-0-(1) |
| Electrical Rating | 3A-125 VAC |
| Color | Black-Button |

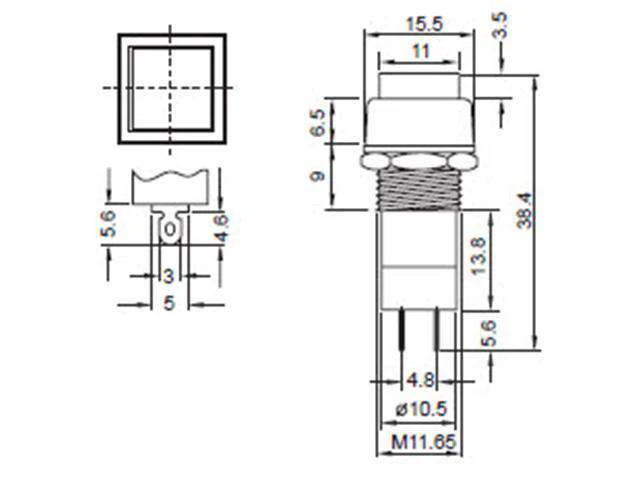

| Size | 15.5x15.5 |
$0.39
Original: $1.29
-70%R18-23B BLACK—
$1.29
$0.39Product Information
