PT02SE-14-19S

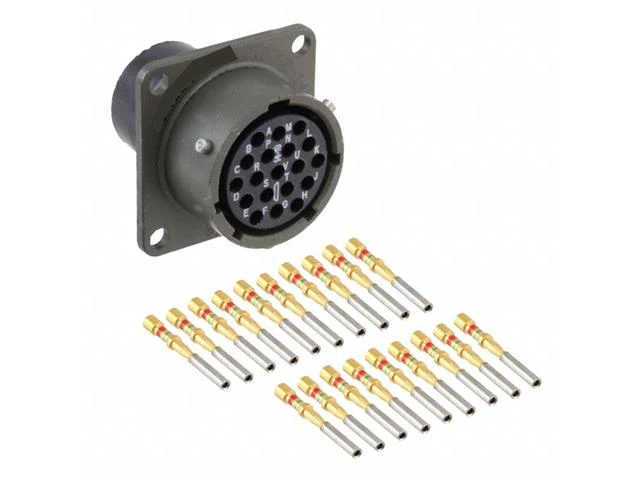

Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock SQ Flange Panel Receptacle Female 19 Pole #20 Crimp Contact 7,5A 600VAC/850VDC (KPSE02E-14-19S) (MS3122E-14-19S)(85102R1419S50)
MIL-DTL-26482 Series 1 Circular Connector
Specifications
|
Number of Positions
|
19
|
|
Qualification
|
MIL-DTL-26482 Series I
|
|
Shell Size - Insert
|
14-19
|
|
Mounting Type
|
Panel Mount
|
|
Mounting Feature
|
Flange
|
|
Termination
|
Crimp
|
|
Fastening Type
|
Bayonet Lock
|
|
Orientation
|
N (Normal)
|
|
Primary Material
|
Metal
|
|
Shell Material
|
Aluminum
|
|
Shell Finish
|
Olive Drab Chromate over Cadmium
|
|
Contact Finish - Mating
|
Gold
|
|
Color
|
Olive Drab
|
|
Ingress Protection
|
Environment Sealed
|
|
Shielding
|
Unshielded
|
|
Current Rating (Amps)
|
7.5A
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Backshell Material, Plating
|
Aluminum, Olive Drab Cadmium
|
|
Contact Material
|
Copper Alloy
|
Additional Information
| Device | Connector |
| Type | MIL-DTL-26482 Series 1 | Circular |
$10.13
Original: $33.77
-70%PT02SE-14-19S—
$33.77
$10.13Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock SQ Flange Panel Receptacle Female 19 Pole #20 Crimp Contact 7,5A 600VAC/850VDC (KPSE02E-14-19S) (MS3122E-14-19S)(85102R1419S50)
MIL-DTL-26482 Series 1 Circular Connector
Specifications
|
Number of Positions
|
19
|
|
Qualification
|
MIL-DTL-26482 Series I
|
|
Shell Size - Insert
|
14-19
|
|
Mounting Type
|
Panel Mount
|
|
Mounting Feature
|
Flange
|
|
Termination
|
Crimp
|
|
Fastening Type
|
Bayonet Lock
|
|
Orientation
|
N (Normal)
|
|
Primary Material
|
Metal
|
|
Shell Material
|
Aluminum
|
|
Shell Finish
|
Olive Drab Chromate over Cadmium
|
|
Contact Finish - Mating
|
Gold
|
|
Color
|
Olive Drab
|
|
Ingress Protection
|
Environment Sealed
|
|
Shielding
|
Unshielded
|
|
Current Rating (Amps)
|
7.5A
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Backshell Material, Plating
|
Aluminum, Olive Drab Cadmium
|
|
Contact Material
|
Copper Alloy
|
Additional Information
| Device | Connector |
| Type | MIL-DTL-26482 Series 1 | Circular |
