POE SPLITTER MICRO USB PST

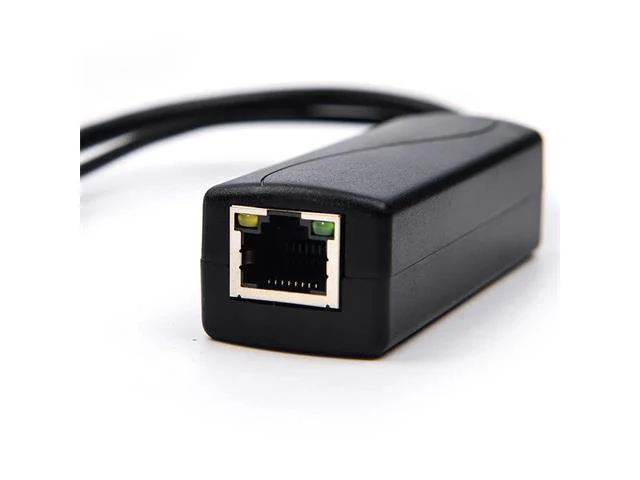

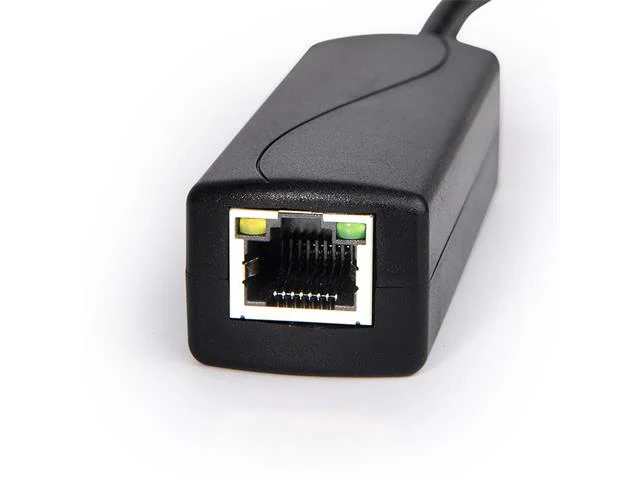

PoE Splitter with RJ45 Port and DC Port
Overview
Features
- Support international standard IEEE802.3 af(12.5W);
- POE port Support 10/100Mdata transmission
- PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
- 5V/2.4A power output using TYPEC ,the TYPEC port only for power-charging.
- Support the isolation circuit protection,can effectively protect electrical equipment.
- Support the short circuit,overvoltage protection
- 1500V high voltage isolation
Specifications
|
Model |
POE SPLITTER TYPE-C PST |
|
Transfer Rate |
10/100M |
|
Power |
Input 48V DC /0.35A, Output 5V/2.4A |
|
Standard |
IEEE802.3 af(12.5W) |
|
TRNF |
1/2(+),3/6(-);4/5(+),7/8(-) |
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output（TYPEC） |
|
|
|
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
|
LED |
Yellow PoE lamp |
|
Environment |
Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
|
Dimension |
68L * 25W *25H |
|
Weight |
0.05kg |
Downloads
Additional Information
| Device | PoE Splitter |
| Type | with RJ45 Port and DC Port |
