PL2600SW RED

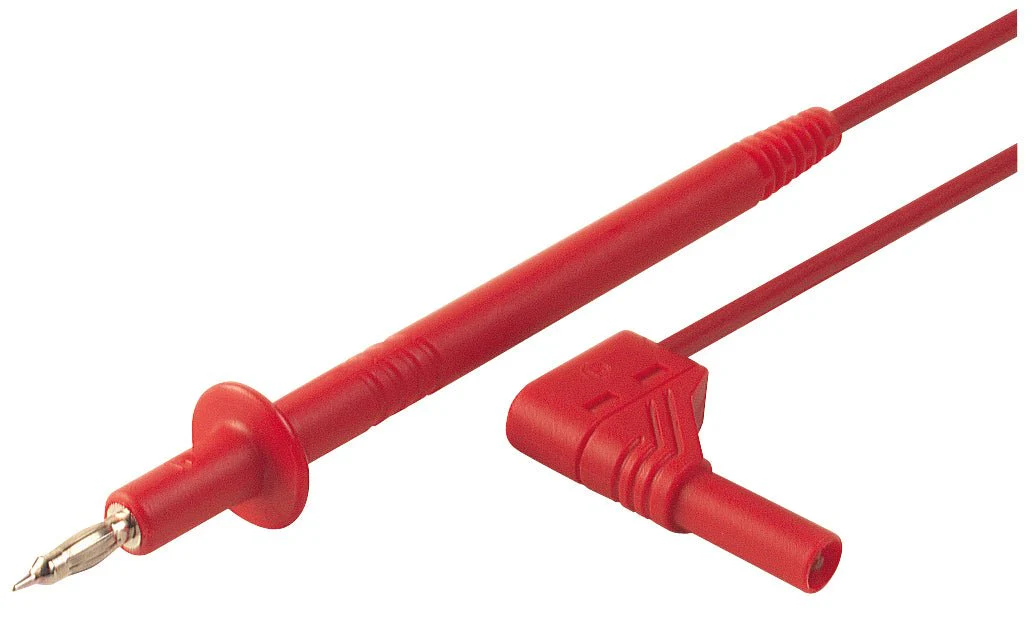

Red Safety Test Lead 4mm with dual function safety test probe with right-angled outlet • length : 100cm
Overview
Features
- Safety test lead with dual function safety test probe
- Tip for penetration of insulation and oxide layers and 4mm diameter pin for insertion into sockets
- 4mm diameter safety connector with right-angled outlet
- Includes Tip protection
Specification
- System: 4mm safety system
- Color : Red
- Measurement category acc. to IEC 61010: CAT II
- Norm : IEC 61010
- Pin dimensions: 4 mm
- Type of contact: pin (spring loaded), tip (unsprung)
- Cable type: LEH-XY
- Cable specification: highly flexible lead
- Wire stranding: 259 x 0.07 mm
- Rated voltage: AC/DC 1000 V
- Rated current: 16 A
- Contact resistance: 20 mOhm
- Cable length: 100 cm
- Conductor size: 1 mm²
- Cable material: PVC
- Cable color: black
- Contact material: copper - beryllium
- Contact surface material: nickel
- Housing material: PA, PP
- Temperature range: -15°C to +70°C
- Inflammable class: Housing (basic material): UL 94 HB
Additional Information
| Colour | Red |
| Size | 4mm |
| Cable Length | 1 meter |
| Conductor Size | 1mm² |
