PKI100 RED

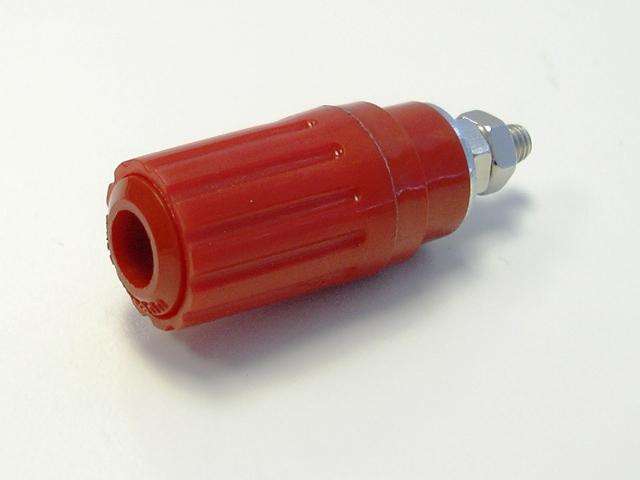

4mm Binding Post 35A • Red
Overview

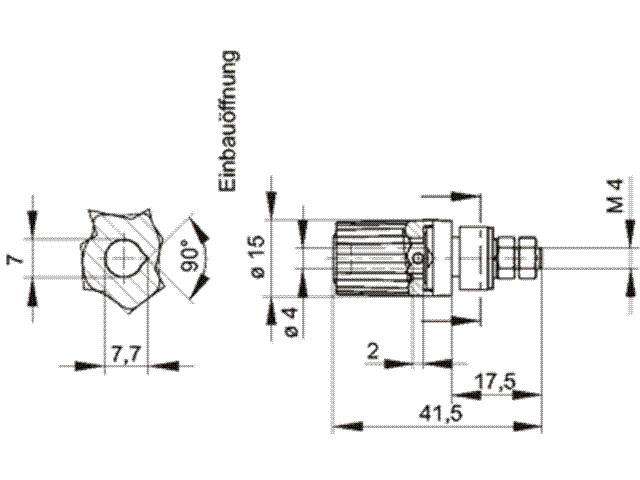

Pole terminal with captive insulated head, which is held under constant pressure against the insulated rings by a spring. 4 mm diameter nickel-plated, brass threaded bolt with 2 mm diameter transverse hole. For non-rotating installation in switchpanels and equipment chassis with wall thickness up to 3.5 mm.
Features
Fully Insulated
15mm Head diameter
Screw Thread M4 bore with 2xM4 nuts
15mm Head diameter
Screw Thread M4 bore with 2xM4 nuts
Specification
| Colour | Red |
| Size | 4mm |
Downloads
$2.01
Original: $6.69
-70%PKI100 RED—
$6.69
$2.01Product Information
