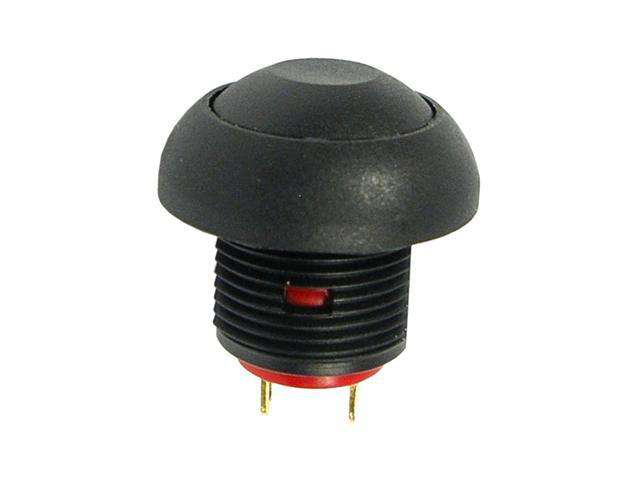

PBR171BTLE0
IP67 Non-Illuminated Momentary Push Button Switch • Form : SPST-1-(0M) – without LED • 17mm Round Black Bezel • Black Button • Solder-Lug
Overview
Features
Specification
| Transition Style | Momentary |
| Termination | Solder-Lug |
| Switch Circuit | SPST-1-(0M) – without LED |
| Electrical Rating | 400mA – 32VAC | 100mA – 50VDC | 125mA – 125VAC | 500mA – 48VAC | 200mA – 50VDC | 500mA – 250VAC |
| Electrical Life | 500000 Cycles |
| No.of Poles/Pins | 2Pin |
| Bezel | 17mm Round |
| Bezel Colour | Black |
| Button Colour | Black |
| Size | ø17.5mm |
| Mechanical Life | 1000000 cycles |
| Temperature | -30~85°C |
$0.95
Original: $3.18
-70%PBR171BTLE0—
$3.18
$0.95Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
IP67 Non-Illuminated Momentary Push Button Switch • Form : SPST-1-(0M) – without LED • 17mm Round Black Bezel • Black Button • Solder-Lug
Overview
Features
Specification
| Transition Style | Momentary |
| Termination | Solder-Lug |
| Switch Circuit | SPST-1-(0M) – without LED |
| Electrical Rating | 400mA – 32VAC | 100mA – 50VDC | 125mA – 125VAC | 500mA – 48VAC | 200mA – 50VDC | 500mA – 250VAC |
| Electrical Life | 500000 Cycles |
| No.of Poles/Pins | 2Pin |
| Bezel | 17mm Round |
| Bezel Colour | Black |
| Button Colour | Black |
| Size | ø17.5mm |
| Mechanical Life | 1000000 cycles |
| Temperature | -30~85°C |
