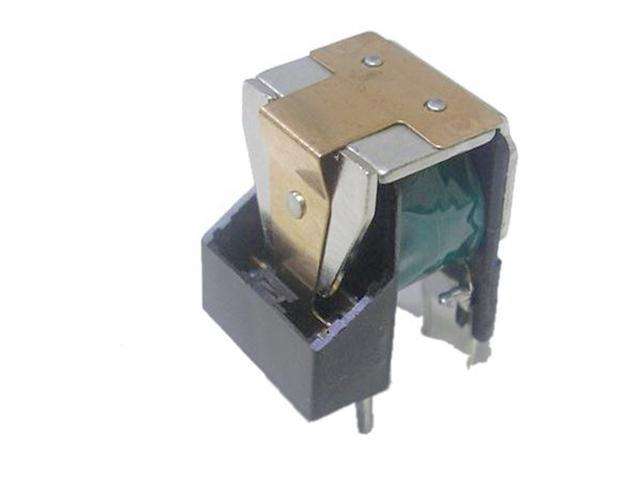

OAR-W-1-12DM
Open Automotive Relay • Form 1A • VCoil= 12V DC • IMax Switching= 15A • RCoil= 155Ω • PCBOverview
Features
Specification
| Model | OAR-W-1-12DM |
| Contact Form | Form 1A |
| Size | 15x13x17mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 15A |
| Electrical Rating | 15A/12VDC |
| Coil Resistance | 155Ω |
| Isolation Voltage | 500V |
| No. of Pins | 7 Pin(s) |
| No. of Poles | 1 Pole(s) |
$0.54
OAR-W-1-12DM—
$0.54
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Open Automotive Relay • Form 1A • VCoil= 12V DC • IMax Switching= 15A • RCoil= 155Ω • PCBOverview
Features
Specification
| Model | OAR-W-1-12DM |
| Contact Form | Form 1A |
| Size | 15x13x17mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 15A |
| Electrical Rating | 15A/12VDC |
| Coil Resistance | 155Ω |
| Isolation Voltage | 500V |
| No. of Pins | 7 Pin(s) |
| No. of Poles | 1 Pole(s) |
