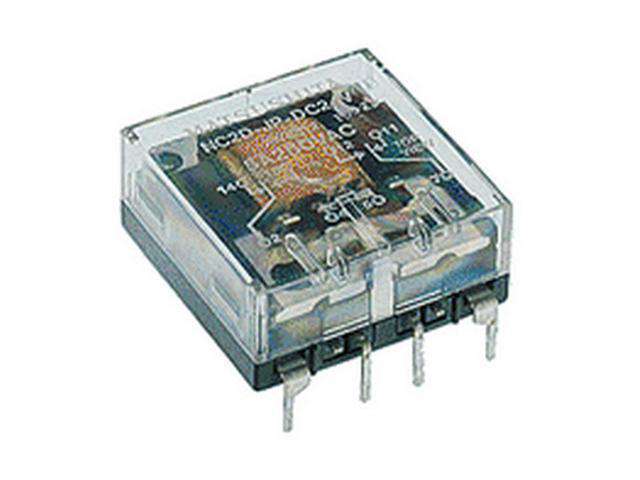

NC2D-JP-DC24V
Power Relay • Form 2C • VCoil= 24V DC • PCB
Overview
Features
- Bifurcated Contacts
- Horizontal Case
Specification
| Model | NC2DJPDC24V |
| Contact Form | Form 2C |
| Size Category | Std Size |
| Size | 25x25x11mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A/250VAC |
| Coil Power | 360mW Power |
| Coil Resistance | 1.6kΩ |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
Downloads
$9.56
NC2D-JP-DC24V—
$9.56
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Power Relay • Form 2C • VCoil= 24V DC • PCB
Overview
Features
- Bifurcated Contacts
- Horizontal Case
Specification
| Model | NC2DJPDC24V |
| Contact Form | Form 2C |
| Size Category | Std Size |
| Size | 25x25x11mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A/250VAC |
| Coil Power | 360mW Power |
| Coil Resistance | 1.6kΩ |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
