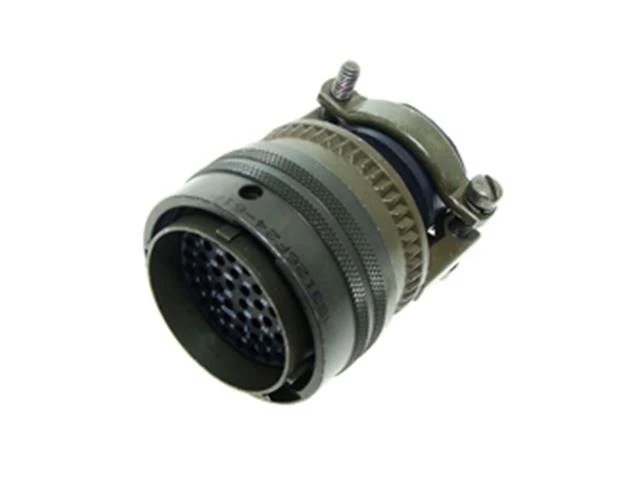

MS3121F-14-15P
Circular Connector MIL-DTL-26482 Series 1 Style Bayonet Lock Cable End Receptacle Relief Male 15 Pole 14* #20/1* #16 Crimp Contact 7,5A/22A 600VAC/850VDC (KPSE01F-14-15P)(PT01F14-15P)(85101RC1415P50)
Circular Connector MIL-DTL-26482
Specifications
- Body Material : Aluminium
- Contact Material : Copper
- Contact Plating : Gold
- Mount : Cable, Free Hanging
- Plating : Cadmium, Chromate
- Shell Material : Aluminium
Technical
- Connector Type : Circular, Receptacle
- Contact Gender : Male
- Contact Style : Pin
- Current Rating : 13 A
- Fastening Type : Bayonet
- Gender : Female
- Max Operating Temperature : 125 °C
- Military Standard : MIL-DTL-26482
- Min Operating Temperature : -55 °C
- Number of Contacts : 15
- Number of Positions : 15
- Termination : Crimp
Additional Information
| Device | Connector |
| Type | Circular | MIL-DTL-26482 |
$13.22
Original: $44.06
-70%MS3121F-14-15P—
$44.06
$13.22Product Information
