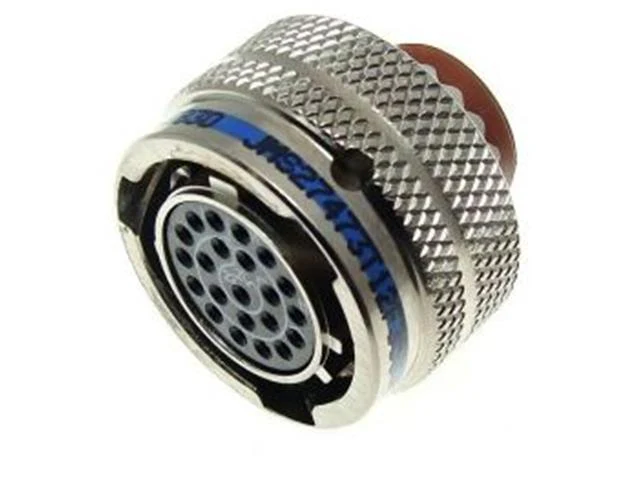

MS27473T12F35S
Circular Connector Bayonet Lock Cable End Plug Electroless Nickel 22P Female Crimp MIL-DTL C38999 Series II- without Cable Clamp. (JT06RT-12-35S 023)
Bayonet Lock Circular Connector
Specifications
- Body Material : Aluminium
- Contact Material : Copper
- Contact Plating : Gold
- Mount : Cable, Free Hanging
- Plating : Electroless Nickel, Passivated, Steel
- Shell Material : Aluminium
Technical
- Connector Type : Circular, Plug
- Contact Gender : Female
- Contact Style : Socket
- Current Rating : 5 A
- Fastening Type : Bayonet
- Gender : Male
- Max Operating Temperature : 200 °C
- Military Standard : MIL-DTL-38999
- Min Operating Temperature : -65 °C
- Number of Contacts : 22
- Number of Positions : 22
- Orientation : Straight
- Termination : Crimp
- Voltage Rating : 500 V
Dimensions
- Length : 22.63 mm
Additional Information
| Device | Connector |
| Type | Bayonet Lock | Circular |
$22.51
Original: $75.02
-70%MS27473T12F35S—
$75.02
$22.51Product Information
